Infrared Temperature Sensor
RD-715-HA Catalog
RD-715-HA Instruction Manual
RDP-24 Instruction Manual

RD-715-HA
RDP-24
RD-715-HA

Infrared Temperature Sensor RD-715-HA
- Non-contact temperature measurement
- Quick response time: 14 ms (90 % response)
- Compact and sturdy sensing head
- Temperature range: 0 to 500
- Drip-proof/Dust-proof IP65
- CE mark certified

Model
Dimensions
Spec




Model
Model
Field-of-View
Temperature Range
Output
RD-715-HA 15:1 0 to 500  Direct current 4 to 20 mA DC (2-wire type)

Dimensions

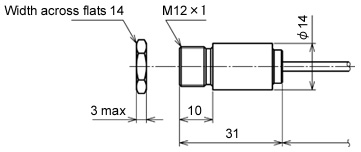

Sensing Head (Scale: mm)
RD-715-HA Sensing Head External dimension

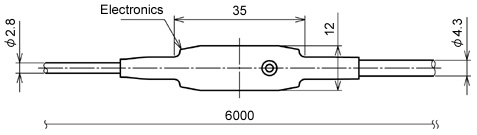

Electronics (Scale: mm)
RD-715-HA Electronics External dimension

Cable End (Scale: mm)
RD-715-HA Cable End External dimension

Accessory Sold Separately: Mounting bracket (TFB) (Scale: mm)
RD-715-HA Mounting bracket (TFB) External dimension

Accessory Sold Separately: Air purge collar (ASAP) (Scale: mm)
RD-715-HA Air purge collar (ASAP) External dimensions

to top


Spec
Rating
Temperature range 0 to 500
Supply voltage 2-wire type 5 to 30 V DC, 4 to 20 mA
External shunt resistor: Max 1000
General Structure
External dimensions Sensing head: 14 x 31 mm (diameter x length), M12 x 1
Electronics: 35 x 12 mm
Mounting Fixed, using a mounting bracket (The mounting bracket is sold separately.)
Material Sensing head: Stainless steel
Cable (Sensing head - Electronics): FEP, Cable diameter: 2.8 mm
Cable (Electronics - Cable end): PVC, Cable diameter: 4.3 mm
Drip-proof/ Dust-proof IP65
Cable length 6 m (Sensing head - Electronics: 3 m, Electronics - Cable end: 3 m)
Performance
System accuracy (*1) 1 % of temperature span
Spectral range 8 to 14 m
Field of view 15:1
Repeatability(*1) 0.75 % of temperature span
Temperature coefficient (*2) 0.05 %/
Temperature resolution 0.1
Response time 14 ms (90 % response)
Warm-up time 10 minutes
Emissivity Fixed at 0.950
0.200 to 1.000 [When digital indicating controller (ACS-13A-x/A, sold separately) is used]
Transmissivity Fixed at 1.000
(*1) Ambient temperature 23
(*2) Ambient temperature (sensing head) is lower than 18 , and higher than 28 .
Output
Analog output Direct current 4 to 20 mA DC
Load impedance (loop impedance): 1000  or less
Other
Ambient temperature Sensing head: -20 to 120
Electronics: -20 to 80
Storage temperature -40 to 85
Ambient humidity 10 to 95 %RH (Non-condensing)
Vibration (sensing head) IEC 68-2-6: 3 G, 11-200 Hz, x,y,z directional
Shock (sensing head IEC 68-2-27: 50 G, 11 ms, x,y,z directional
Weight 152 g
Accessories included Instruction manual: 1 copy
Nut: 1 piece
Accessories sold separately Mounting bracket (TFB) (Scale: mm)
RD-715-HA Mounting bracket(TFB)

Air purge collar (ASAP)
RD-715-HA Air purge collar(ASAP)

Digital indicating controller (ACS-13A-x/A)
RD-715-HA Digital indicating controller (ACS-13A-x/A)


Power supply for the RD series (RDP-24)
Power supply for the RD series (RDP-24)
