Digital Indicating Controllers
ACD-13A_ACR-13A Catalog
ACD-13A_ACR-13A Instruction Manual
ACD-13A_ACR-13A Communication Instruction Manual
ACD-13A, ACR-13A
ON/OFF SERVO Digital Indicating Controllers
ACD-15A, ACR-15A
ACD-15A_ACR-15A Catalog
ACD-15A_ACR-15A Instruction Manual
ACD-15A_ACR-15A Communication Instruction Manual


ACD-13A,ACR-13A,
ACD-15A,ACR-15A Photo
- Clear, large LCD display-Enhanced visibility !
- PV viewable even during control OFF !
- Output MV can be viewed as bar graph
- Simplified setting mode
- A variety of Input/Output Event functions !
- Power via USB cable usable for setup
- Feedback potentiometer "Yes/No" selectable
 (ACD-15A, ACR-15A)
- Drip-proof/Dust-proof
- Spec

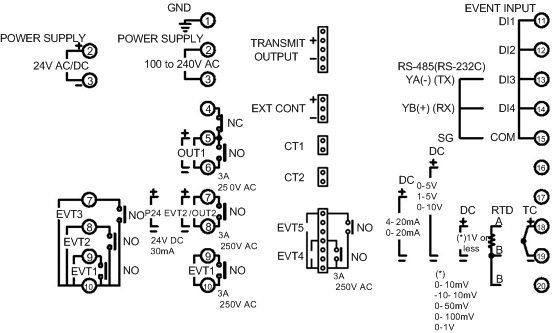

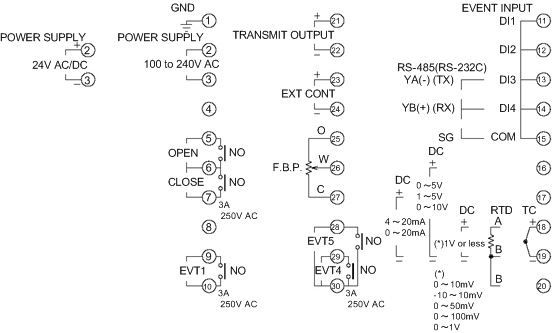

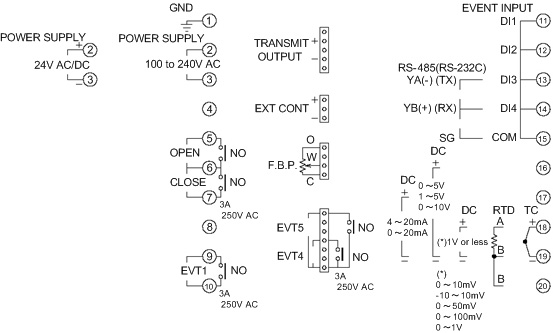

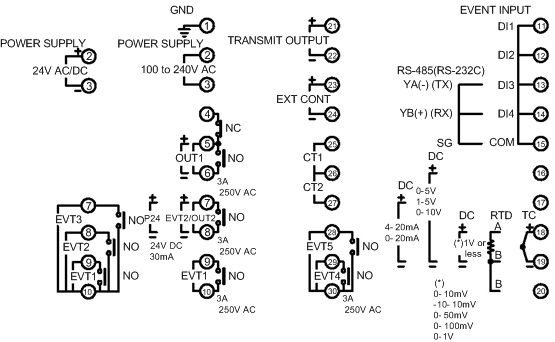

- Terminal Arrangement

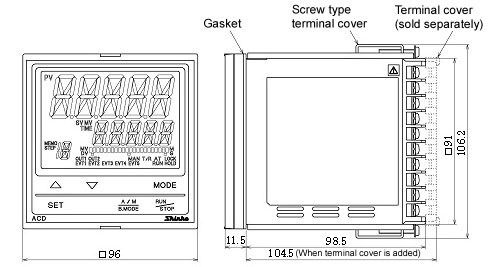

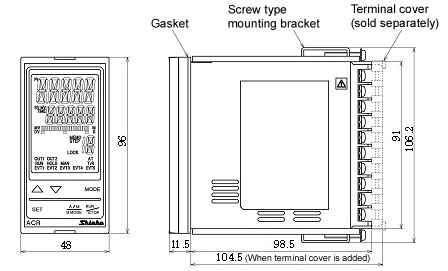

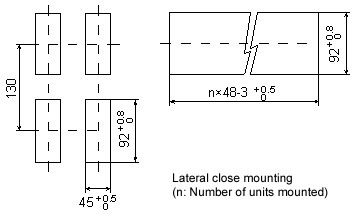

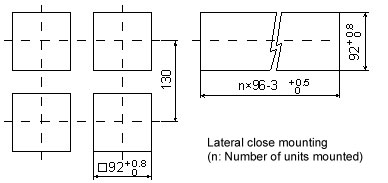

- Dimensions


Clear, large LCD display-Enhanced visibility !
Extra large LCD display
ACD-13A
ACD-15A
PV display: 24.0 x 11.0mm (HxW)
SV/MV/TIME display: 14.0 x 7.0mm (HxW)
ACR-13A
ACR-15A
PV display: 14.0 x 5.4mm (HxW)
SV/MV/TIME display: 10.0 x 4.6mm (HxW)


Comparison with Shinko controller JCD-33A

ACD-13A, ACD-15A
ACD_LCD_display
Shinko controller JCD-33A
JCD-33A_display

to top



PV viewable even during control OFF !
4 choices during control output OFF function
PV can be indicated even during control output OFF, and an alarm output can be selected as well.
OFF indication
ACD-13A_OFF_indication

PV indication
ACD-13A_PV_indication
to top



Output MV can be viewed as bar graph
22-segment (-5 to 105%) bar graph
DV indication is selectable.
ACD-13A
ACD-13A_bar_graph
to top


Simplified setting mode
Basic settings and key operations are now doable via 3 key usage
(Increase, Decrease, Mode key)
 ACD-13A_key
to top

A variety of Input/Output Event functions !
Event input 4 points (option), Event output Max 5 points

Multiple Input/Output Event functions can be selected from; Alarm output,
Heater burnout alarm output (option), Loop break alarm output, Timer output,
Time signal output, Pattern end output, etc.

to top

Power via USB cable usable for setup
If CMB-001 USB communication cable (sold separately) is used, a power supply for the controller is not necessary for initial settings. Console software (SWS-AC001M) displays

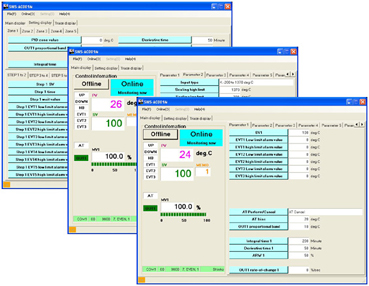

Console software (SWS-AC001M) displays
to top

Feedback potentiometer "Yes/No" selectable
Selectable using the front keypad. (ACD-15A, ACR-15A only)
to top

Drip-proof/Dust-proof
IP66 structure (for the front panel) allows usage in harsh environments where the controller is exposed to water or dust.
to top



Spec
Rating
Rated scale
Input Scale range Resolution
K -200to1370 -328to2498 1()
K -200.0to400.0 -328.0to752.0 0.1()
J -200to1000 -328to1832 1()
R 0to1760 32to3200 1()
S 0to1760 32to3200 1()
B 0to1820 32to3308 1()
E -200to800 -328to1472 1()
T -200.0to400.0 -328.0to752.0 0.1()
N -200to1300 -328to2372 1()
PL-II 0to1390 32to2534 1()
C(W/Re5-26) 0to2315 32to4199 1()
Pt100 -200.0to850.0 -328.0to1562.0

0.1()

-100.0to100.0 -148.0to212.0 0.1()
-100.0to500.0 -148.0to932.0 0.1()
-200to850 -328to1562 1()
JPt100 -200.0to500.0 -328.0to932.0 0.1()
-200to500 -328to932 1()
4to20mA -2000to10000 1
0to20mA -2000to10000 1
0to10mV -2000to10000 1
-10to10mV -2000to10000 1
0to50mV -2000to10000 1
0to100mV -2000to10000 1
0to1V -2000to10000 1
0to5V -2000to10000 1
1to5V -2000to10000 1
0to10V -2000to10000 1

Input
Thermocouple K, J, R, S, B, E, T, N, PL-II, C(W/Re5-26)
External resistance: 100
RTD Pt100, JPt100 3-wire system
Allowable input lead wire resistance: 10 or less per wire
DC current 0-20mA DC, 4-20mA DC
Input impedance: 50, Allowable input current: 50mA or less
DC voltage 0-10mV DC, -10-10mV DC, 0-50mV DC, 0-100mV DC, 0-1V DC
Input impedance: 1M or more, Allowable input voltage: 5V DC or less
Allowable signal source resistance: 2k or less
0-5V DC, 1-5V DC, 0-10V DC
Input impedance: 100k or more, Allowable input voltage: 15V DC or less
Allowable signal source resistance: 100 or less

Supply voltage 100to240V AC 50/60Hz, 24V AC/DC 50/60Hz
Allowable fluctuation range 85to264V AC, 20to28V AC/DC
General structure
External dimensions ACD-13A, ACD-15A: 96x96x110mm (WxHxD)
ACR-13A, ACR-15A: 48x96x110mm (WxHxD)
Mounting Flush
Display
ACD-13A
ACD-15A
PV display: 24.0x11.0mm (HxW)
SV/MV/TIME display: 14.0x7.0mm (HxW)
ACR-13A
ACR-15A
PV display: 14.0x5.4mm(HxW)
SV/MV/TIME display: 10.0x4.6mm (HxW)

Indication performance
Basic accuracy
Thermocouple Within 0.2% of each input span1digit
However, R, S input -50 to 200(-58 to 392): Within 6 (12)
B input, 0 to 300 (0 to 572): Accuracy is not guaranteed
K, J, E, T, N input, Less than 0 (32): Within 0.4% of each input span1digit
RTD Within 0.1% of each input span1digit
DC current,
DC voltage
Within 0.2% of each input span1digit

External setting input accuracy Within 0.2% of each input span
Cold junction temperature compensation accuracy

Within 1 at 0 to 50

Input sampling
period
125ms (When External setting input option is added: 250ms)
Time accuracy Within 1.0% of the setting time

Control performance
Setting accuracy Based on the Basic accuracy and Cold junction temperature compensation accuracy
Control action

PID action (With Auto-tuning)
PI action: When derivative time is set to 0
PD action (With Auto, Manual reset function): When integral time is set to 0
P action (With Auto, Manual reset function): When integral and derivative time is set to 0
ON/OFF action: When proportional band is set to 0
Proportional band (P): 0 to Input span or (DC current, voltage input: 0.0 to 1000.0%)
Integral time (I): 0 to 3600sec
Derivative time (D): 0 to 1800sec
Proportional cycle: 1 to 120sec
ARW: 0 to 100%
ON/OFF action hysteresis: 0.1 to 1000.0 ()
Output high limit, low limit: 0 to 100% (DC current output: -5 to 105%)

Control output ACD-13A, ACR-13A
-Relay contact, 1a1b
-Non-contact voltage (for SSR drive)
-DC current

ACD-15A, ACR-15A
-Relay contact, 1a x 2
Standard functions
Event output

2 points of Event output
Selectable during Event output allocation by keypad
-Alarm output; High limit
-Alarm output; Low limit
-Alarm output; High/Low limits
-Alarm output; High/Low limits independent
-Alarm output; High/Low limit range
-Alarm output; High/Low limit range independent
-Alarm output; Process high
-Alarm output; Process low
-Alarm output; High limit with standby
-Alarm output; Low limit with standby
-Alarm output; High/Low limits with standby
-Alarm output; High/Low limits with standby independent
-Timer output
-Timer output (Control ON while timer ouput is ON)
-Heater burnout alarm output (When W option is added)
-Loop break alarm output
-Time signal output
-Output during AT
-Pattern end output

Console communication

By connecting the USB communication cable (CMB-001) to the Console connector of the instrument, the following operations can be conducted from the external computer using the Console software SWS-AC001M.
Console communication and Serial communication cannot be used together.
-Reading and setting of the SV, PID values and various set values
-Reading of the PV and action status
-Function change

Communication specifications
-Communication protocol: Shinko protocol
-Communication interface: C-MOS level
-Communication method: Half-duplex communication
-Synchronization method: Start-stop synchronization
-Communication speed: 9600bps
-Data bit: 7
-Parity: Even
-Stop bit: 1
-Exclusive cable

Attached functions Sensor correction, Set value lock, Auto/Manual switching, Program control, Set value ramp, Power failure countermeasure, Self-diagnosis, Automatic cold junction temperature compensation, Burnout, Input abnormality, Warm-up indication, PV color switching, Timer, Bar graph indication

Optional functions
Event input
(EI option)

If this option and Serial communication (C, C5 option) are added together, Event input EVI3 and EVI4 cannot be used.

4 points of event input
Selectable during Event input allocation by keypad
-Set value memory function
-Control ON/OFF
-Direct/Reverse control action
-Timer function Start/Stop
-PV display; PV holding
-PV display; PV peak value holding
-Preset output
-Auto/Manual control
-Remote/Local
-Program mode; RUN/STOP
-Program mode; Holding/Not holding
-Program mode; Advance function
-Integral action holding

Event output
(EVT3 option)

(Only for ACD-13A, ACR-13A)
If this option is added, Heating/Cooling control (DR, DS, DA option) or Insulated power output (P24 option) cannot be added together.

EVT1 to EVT3 will be added using a common terminal.
Selectable by keypad during Event output allocation (the same as the standard Event output function)

Event output
(EVT5 option)

EVT4, EVT5 can be added.
Selectable by keypad during Event output allocation (the same as the standard Event output function)

Heater burnout alarm
(W option)
(Only for ACD-13A, ACR-13A)
Monitors heater current with CT (current transformer), and detects burnout.
Rated current: Single-phase; 20A, 100A, 3-phase; 20A, 100A
Setting range: 0.0 to 20.0A or 0.0 to 100.0A
Setting accuracy: Within 5% of the rated current
Action point: set value

Heating/Cooling control output
(Dx option)

(Only for ACD-13A, ACR-13A)
If this option is added, Event output (EVT3 option) or Insulated power output (P24 option) cannot be added together.
If this option is added, Event output EVT2 cannot be used.

An action mode is selectable by front keypad.
-Air cooling: Linear characteristic
-Oil cooling: 1.5th power of the linear characteristic
-Water cooling: 2nd power of the linear characteristic

OUT2 output
-DR: Relay contact 1a1b
-DS: Non-contact voltage (for SSR drive)
-DA: DC current

Serial communication
( C, C5 option)
If this option and Event input (EI option) are added together, Event input EVI3 and EVI4 cannot be used.

The following operations can be carried out from the external computer.
-Reading and setting of the SV, PID values and various set values
-Reading of the PV and action status
-Function change

Communication specifications
-Communication line: C(EIA RS-232C), C5(EIA RS-485)
-Communication method: Half-duplex communication
-Synchronization method: Start-stop synchronization
-Communication speed: 9600, 19200, 38400bps (Selectable by keypad)
-Data bit: 7, 8
-Parity: Even, Odd, No parity
-Stop bit: 1or 2 (Selectable by keypad)
-Communication protocol: Shinko protocol, Modbus ASCII, Modbus RTU (Selectable by keypad)

Digital external setting via Shinko programmable controllers:
Receives the digital set values from the Shinko programmable controllers (PC-900, PCD-33A with SVTC option).
External setting input
(Ex option)

SV adds external analog signal to remote bias value.

Setting signal
-EA(4-20): DC current 4-20mA DC
-EA(0-20): DC current 0-20mA DC
-EV(1-5): DC voltage 1-5V DC
-EV(0-1): DC voltage 0-1V DC
Input sampling 0.25sec

Transmission output
(Tx option)

Converting the value (PV, SV, MV or DV transmission) to analog signal every 0.125 seconds, outputs the value in current or voltage.

Resolution: 1/12000
Output
-TA: DC current 4 to 20mA DC (load resistance Max. 500)
-TV: DC voltage 0 to 1V DC (load resistance Min.100k)
Output accuracy: Within 0.3% of the transmission output span
Insulated power output
(P24 option)
(Only for ACD-13A, ACR-13A)
If this option is added, Event output (EVT3 option) or Heating/Cooling control (DR, DS, DA option) cannot be added together.
If this option is added, Event output EVT2 cannot be used.

Output voltage: 243V DC (when load current is 30mA DC)
Ripple voltage: Within 200mV DC (when load current is 30mA DC)
Max load current: 30mA DC
Insulation, Dielectric strength

Insulation resistance

10M or more, at 500V DC
When OUT1 and OUT2 are non-contact voltage or DC current output, OUT1 is
not insulated from OUT2.
Dielectric strength Between Power terminal - Ground: 1.5kV AC for 1minute
Between Input terminal - Ground: 1.5kV AC for 1minute
Between Input terminal - Power terminal: 1.5kV AC for 1minute
Other
Ambient temperature 0 to 50
Ambient humidity 35 to 85%RH (Non-condensing)
Drip-proof/
Dust-proof
IP66 for the front panel

to top

Terminal Arrangement

ACD-13A
ACD-13A_Terminal_arrangement
ACR-13A
ACR-13A_Terminal_arrangement
ACD-15A_Terminal_arrangement
ACD-15A_Terminal_arrangement
ACR-15A_Terminal_arrangement
ACR-15A_Terminal_arrangement
to top

Dimensions
  External dimensions (Scale: mm)

ACD-13A, ACD-15A
ACD_External_dimensions

ACR-13A, ACR-15A
ACR_External_dimension
  Panel cutout (Scale: mm)



ACD-13A, ACD-15A
ACD_Panel_cutout

ACR-13A, ACR-15A
ACR_Panel_cutout
to top



CE마킹적합품 / UL취득제품 | 생산종료제품
사이트맵 | 이용조건 | 개인정보보호 관련 | 품질 및 환경활동
Copyright (C) 2003-2024 Shinko Technos Co., Ltd. All rights reserved.
