Digital Indicating Controllers |
|
| JCL-33A series |
|
| 48 x 24 x 98.5mm (W x H x D) |
|
A total of 18 types of input are available from thermocouple (10 types), RTD (2 types),
DC current (2 types) and DC voltage (4 types).
Available for use in a variety of machines, such as injection molders, extruders,
bag makers, packagers, dryers and electric furnaces.
As the input sampling period is very short (0.25 seconds), this controller is
applicable to a wide range of processes. |
|
2-point Event output (relay contact, open collector) is a standard feature.
Selectable from alarm action, timer function and pattern end function by keypad operation. |
|

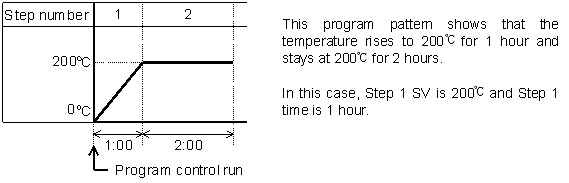

| Simplified programmable controller |
|
A 1 pattern/9 step programmable controller function is a standard feature. |
 |
| The input signal of the thermocouple, RTD, Direct current and DC voltage can be converted to insulated 4 to 20mA DC. |
|
|
Selectable by keypad from SV1/SV2 external selection, Control output ON/OFF (RUN/STOP) external selection and Timer function. |
|

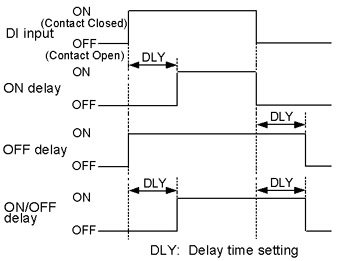

Delay actions are operable by an external input signal.
Selectable from ON delay, OFF delay and ON/OFF delay by keypad. |
 |
| IP66 structure (for the front panel) allows usage in harsh environments, such as exposure to water or dust. |
|
| Serial communication (optional) |
Shinko protocol and Modbus protocol (Modbus ASCII, Modbus RTU) are available.
Instrument number and communication protocol can be selected by keypad. |
|
The monitoring software, SWM-JCL01M, has various functions, such as All channels
display,
1 channel display, Data logging, etc. |
Main display
Bar graph display
1 channel display
Setting display
Chart display
Logging display
All channels setting display
 |
| |

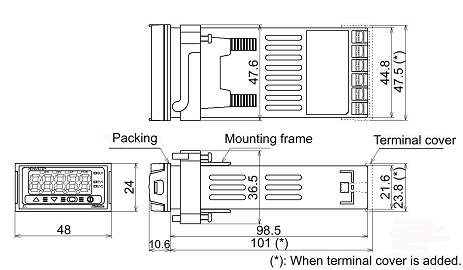

External dimensions (Scale: mm) |
| |
|
| |
Panel cutout (Scale: mm) |
|
|
|
