RD-500
|
RDP-24
|
|
RD-500 series |
|
Model
|
|
Field of View
|
Temperature Range
|
Output
|
RD-502-M0 |
Field og view |
2:1 |
0 to 250 ![](img/0_unit_c.gif) |
DC current 4 to 20mA DC (2-wire type) |
RD-515-M0 |
15:1 |
0 to 250 ![](img/0_unit_c.gif) |
RD-515-H0 |
0 to 500 ![](img/0_unit_c.gif) |
RD-5CF-H0 |
Close focus |
0 to 500 ![](img/0_unit_c.gif) |
|
|
|

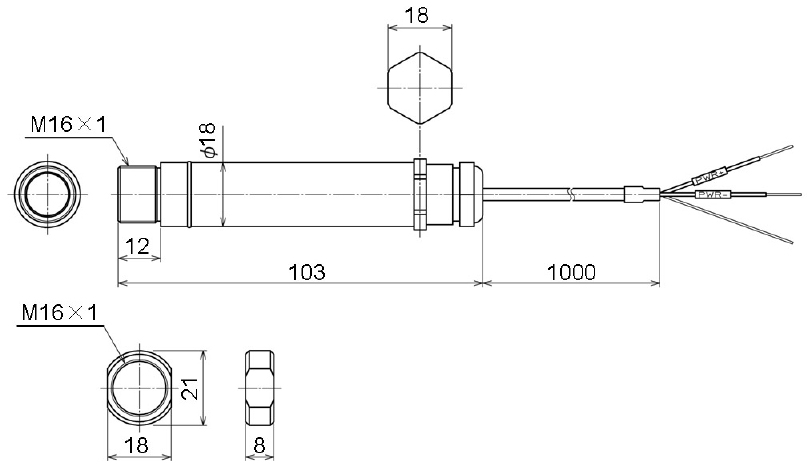

External Dimensions(Scale: mm) |
RD-502-M0, RD-515-M0, RD-515-H0 |
![RD-502-M0, RD-515-M0, RD-515-H0 External Dimensions](img/rd_5xx_x0_dimension.jpg) |

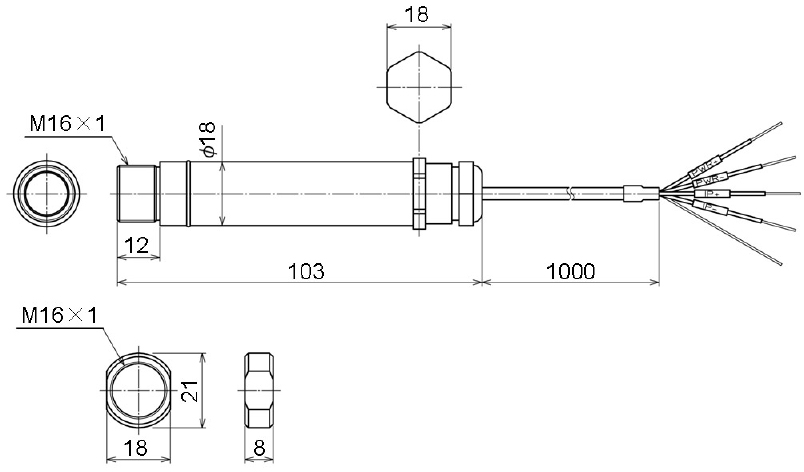

RD-5CF-H0 |
![RD-5CF-H0 External Dimensions](img/rd_5cf_h0_dimension.jpg) |
|
|
![to top](../img2/tohead.gif) |
![](../img2/spacer.gif) |
Rating |
Temperature Range |
Model |
Temperature Range |
RD-502-M0, RD-515-M0 |
0 to 250 ![](img/0_unit_c.gif) |
RD-515-H0 |
0 to 500 ![](img/0_unit_c.gif) |
RD-5CF-H0 |
0 to 500 ![](img/0_unit_c.gif) |
|
Power Supply |
24 V DC(Max 28 V DC), 25 mA |
|
|
General Structure |
External Dimensions |
18 x 103
mm (diameter x length) |
Mounting |
Fixed using a mounting bracket
(The mounting bracket is sold separately) |
Material |
Stainless steel SUS304 |
Drip-proof/Dust-proof |
IP65 |
Cable Length |
1 m |
|
|
Performance |
Accuracy |
1
% of reading or 1
whichever is greater |
Repeatability |
0.5
% of reading or 0.5
whichever is greater |
Emissivity |
Fixed at 0.95
0.200 to 1.000 [When the emissivity adjuster (PTA,
sold separately) is used]
0.200 to 1.000 [When the dijital indicating controller
(ACS-13A-x/A, sold separately) is used] |
Response |
240 ms(90 % response) |
Spectral Range |
8 to 14 m |
Max. Load Resistance |
900 (DC current output)(for 24
V DC) |
Diameter of target spot measured versus distance from sensing head |
Model |
Diameter of target spot measured versus distance from sensing head |
RD-502-M0
(Field of view 2:1) |
![RD-502-M0 Diameter of target spot measured versus distance from sensing head](img/rd_502_m0_target.gif) |
RD-515-M0, RD-515-H0
(Field of view 15:1) |
![RD-515-M0, RD-515-H0 Diameter of target spot measured versus distance from sensing head](img/rd_515_x0_target.gif) |
RD-5CF-H0
(Close focus) |
![RD-5CF-H0 Diameter of target spot measured versus distance from sensing head](img/rd_5cf_h0_target.gif) |
|
|
|
Other |
Ambient Temperature |
0 to 70 ![](img/0_unit_c.gif) |
Ambient Humidity |
Max. 95 %RH (non-condensing) |
Weight |
Approx. 100 g (Cable included) |
Accessories included |
Instruction manual: 1 copy |
Accessories Sold Separately |
Fixed-mounting bracket (FBS)
![Fixed-mounting brecket FBS](img/rd_500_fbs.gif)
Adjustable-mounting bracket (ABS)
![Adjustable-mounting bracket ABS](img/rd_500_abs.gif)
Air purge collar (APSN)
![Air purge collar APSN](img/rd_500_apsn.gif)
Air purge collar (APSW)
![Air purge collar APSW](img/rd_500_apsw.gif)
Digital indicating controller (Emissivity setting function added)(ACS-13A-x/A)
![Digital indicating controller (Emissivity setting function added) ACS-13A-x/A](img/acs13_150.jpg)
Power supply for the RD-500 (RDP-24)
![Power supply for the RD-500 RDP-24](img/rdp_24.jpg)
|
Safety Standards |
RoHS directive compliant
CE marking compliant |
|
|
