Digital Temperature Indicating Controller

ACN-200

Digital Temperature Indicating Controller ACN_200

- Potentiometer analog setting
- Auto-reset function
- Control action can be changed with the DIP switch.
- Model
- Spec
- Alarm Function
- Terminal Arrangement
- Dimensions

Potentiometer analog setting

As easy to operate as our traditional model, the ACN-100 series.
Can set and change the SV easily using an analog setting unit (potentiometer).

Auto-reset function

The ACN-220 (PD control) comes with an Auto-reset function.

Control action can be changed with the DIP switch.

Control action: PD or ON/OFF control is selectable with the DIP switch.

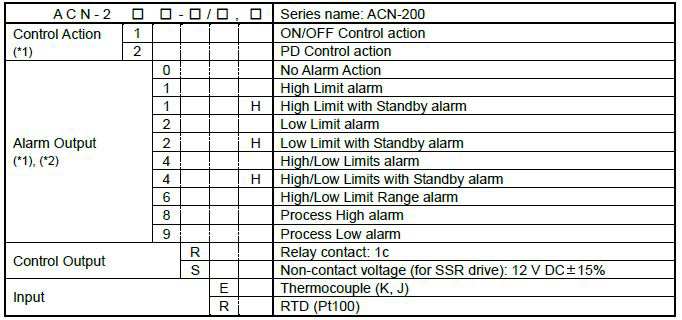

Model

Model	(1) Control Action and Alarm Type can be selected with the DIP switch. When shipped, user specified Control Action and Alarm Type have been set on the controller. (2) For the Alarm Action with Standby, “H” is attached to the end of the model name.
Rated range	[ ]: One division of the setting scale

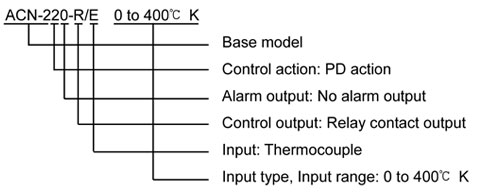

Ordering example

Spec

Rating

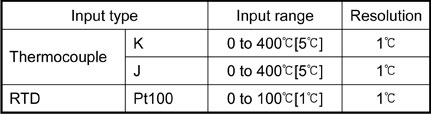

Rated scale

Thermocouple

Input		Scale range	Resolution
E	K	0 to 400 [5]*	1
E	J	0 to 400 [5]*	1

*: One division of the setting scale

RTD

Input		Scale range	Resolution
R	Pt100	0 to 100 [1]*	1

*: One division of the setting scale

Input

Thermocouple

K, J

External resistance 100

or less

RTD

Pt100, 3-wire system

Allowable input lead wire resistance: 10

or less per wire

Supply voltage

100 to 240V AC 50/60Hz

Allowable voltage fluctuation

85 to 264V AC

General structure

Dimensions

96x96x120mm (WxHxD)

Mounting

Flush

Material

Case: Polycarbonate resin

Color

Dark gray

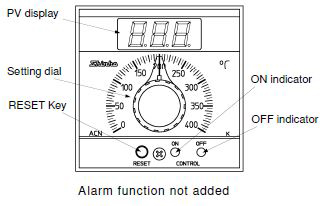

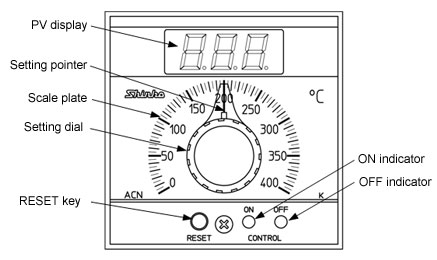

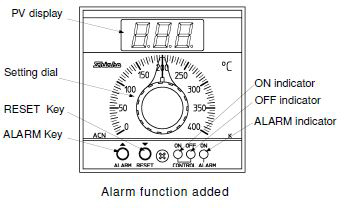

Front panel

ACN-200_name of section

Indication structure

PV display	Indicates PV	7-segment Red LED display 3-digit Character size: 14.3x8.0mm(HxW)
Action indicators	ON indicator (Green)	Lights when the control output is ON.
Action indicators	OFF indicator (Red)	Lights when the control output is OFF.

Setting structure

Potentiometer	Sets the SV. Scale length: 121mm (Angle: 240 degrees)
Function key	RESET key: Performs Auto-reset.

Control structure

SV setting

Analog setting with the potentiometer

Indication performance

Indication accuracy	Within 0.5% of each input span 1 digit
Input sampling period	250ms

Control performance

Setting accuracy

Within

1.0% of each input span

Control action

PD action (with Auto-reset function) (DIP switch No. 1: OFF)
ON/OFF action (DIP switch No. 1: ON)

Proportional band (P)	2.5% of each input span
Derivative time (D)	50sec
Proportional cycle	Non-contact voltage output: 3sec Relay contact output: 30sec
ON/OFF hysteresis	0.6% of each input span

Control output

Relay contact 1c	Control capacity: 5A 250V AC (resistive load), 2A 250V AC (inductive load cos=0.4) Electrical life: 100,000 cycles
Non-contact voltage (for SSR drive)	12V DC 15% Max. 40mA DC (short circuit protected)

Standard functions

Attached functions

Power failure countermeasure, Self-diagnosis, Automatic cold junction temperature compensation, Burnout Indication, Input abnormality, Warm-up indication

Alarm Function

Alarm output

The Alarm action point is set as a ±deviation from SV (except Process alarm). When the PV is out of the range, the alarm output turns ON or OFF (in the case of High/Low Limit Range alarm).
If the Alarm Function is specified, one type can be selected with the DIP switch: No Alarm Action, High Limit alarm, High Limit with Standby alarm, Low Limit alarm, Low Limit with Standby alarm, High/Low Limits alarm, High/Low Limits with Standby alarm, High/Low Limit Range alarm, Process High alarm and Process Low alarm.

Setting accuracy	Same as the Setting Accuracy of Control Performance
Action	ON/OFF action
Hysteresis	1
Output	Relay contact, 1c Control capacity:3A 250 V AC (resistive load) 1 A 250 V AC (inductive load cos =0.4) Electrical life: 100,000 cycles

Insulation, Dielectric strength

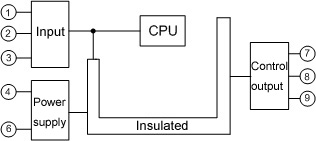

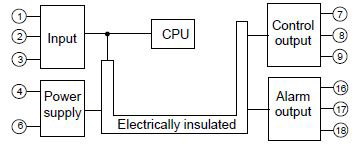

Circuit configuration
Insulation resistance	10M or more, at 500V DC
Dielectric strength	1.5kV AC for 1 minute (Between input terminal and power terminal, Between control output terminal and power terminal)

Other

Power consumption	Approx. 5VA
Ambient temperature	0 to 50
Ambient humidity	35 to 85%RH (Non-condensing)
Weight	Approx. 370g
Accessories	Mounting brackets: 1 set, Instruction manual: 1 copy

Alarm Function

Alarm output: Setting by the deviation from the SV (except process alarm).
If the input goes outside the range, the output turns ON or OFF (in the case of High/Low limit range alarm).
Alarm type: If any alarm type (except no alarm action) is specified, the alarm type can be changed with the DIP switch. (Default: Customer specified alarm type)

Alarm type	Setting range	SW2	SW3	SW4	SW5
No alarm action	─	OFF	OFF	OFF	OFF
High limit alarm	-199 to input span	ON	OFF	OFF	OFF
High limit alarm with standby	-199 to input span	ON	OFF	OFF	ON
Low limit alarm	-199 to input span	OFF	ON	OFF	OFF
Low limit alarm with standby	-199 to input span	OFF	ON	OFF	ON
High/Low limits alarm	0 to input span	ON	ON	OFF	OFF
High/Low limits with standby	0 to input span	ON	ON	OFF	ON
High/Low limit range alarm	0 to input span	OFF	OFF	ON	OFF
Process high alarm	0 to input span	ON	OFF	ON	OFF
Process low alarm	0 to input span	OFF	ON	ON	OFF

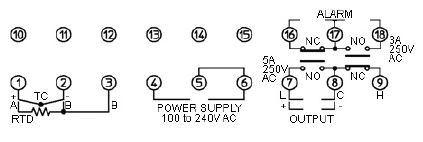

Terminal arrangement

TC: Thermocouple input
RTD: RTD input
OUTPUT: Control output
ALARM: Alarm output

Dimensions

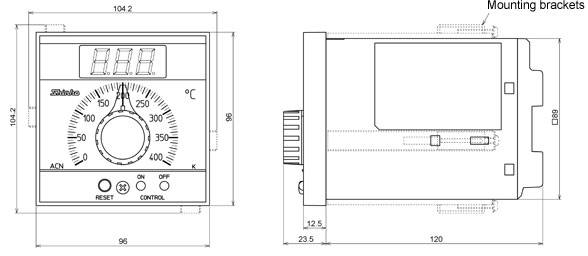

External dimensions (Scale: mm)

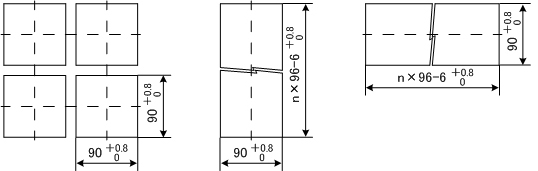

Panel cutout (Scale: mm)


	Lengthwise close mounting n: Number of units mounted	Lateral close mounting n: Number of units mounted
