Digital Indicating Controller
ACS-13A Catalog
ACS-13A Instruction Manual
ACS-13A Communication Instruction Manual
ACS-13A

Digital Indicating Controller ACS-13A
- Compact, Space saving
- 11-segment LCD adapted
- An easier viewing display, PV color switchable
- Console connector equipped (standard)
- Output rate-of-change function (standard)
- Multi-input, High-speed sampling
- Dirp-proof/Dust-proof
- Multiple options
   Set value memory external selection
   Serial communication
   Heater burnout alarm output
   Heating/Cooling control output

- Dimensions



Compact, Space saving
48 x 48 x 62mm (W x H x D)
With panel interiors of 56mm, space is saved in the control panel area.
When a gasket (Drip-proof/Dust-proof, IP66) is used, the depth will be 54.5mm.

to top


11-segment LCD adapted

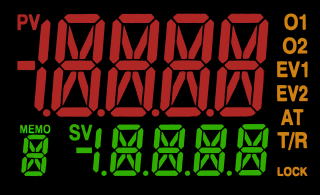

A much easier to read 11-segment LCD is used..

11-segment LCD display

 (Note) All segments are backlit for purposes of explanation.
Actual indication is different from the one above.

Indication examples
Input type selection [SENS] Alarm 1 Energized/De-energized selection [A1LM]

   ACS-13A Input type selection [SENS]             ACS-13A Alarm 1 Energized/De-energized selection [A1LM]


Alphabetical characters
Alphabet A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Indication
to top


An easier viewing display, PV color switchable
The PV display color can be selected from red, green and orange. The PV display color can also change continuously depending on deviation between PV and SV, which allows easy and distinct checking of control status.
       Hys: Set point of PV color range

    PV is lower than SV-Hys    PV is within SVHys    PV is higher than SV+Hys
ACS-13A PV is lower than SV-Hys ACS-13A PV is within SV+-Hys ACS-13A PV is higher than SV+Hys

to top

Console connector equipped (standard)

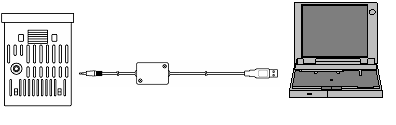

By connecting to a PC via USB port, various settings and monitoring can be conducted using the Console software (SWS-ACS01M). Connectiong to a PC via USB port


USB communication cable (CMA)
    USB communication cable (CMA)

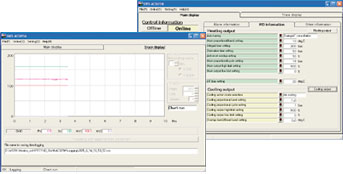

 Console software (SWS-ACS01M)
Console software (SWS-ACS01M) displays
to top

Output rate-of-change function (standard)
This is suitable for heaters which are not designed for sudden changes in output and for controlling heaters such as the Kanthal Super.
to top

Multi-input, High-speed sampling
18 types of input such as thermocouple (10 types), RTD (2 types), DC current (2 types) and DC voltage (4 types) are available.
The ACS-13A can perform temperature control for various machines such as injection molders, extruders, packagers, bag makers, dryers and electric furnaces.
A fast 0.25 second sampling period allows application to various processes.

to top

Dirp-proof/Dust-proof
IP66 structure (for the front panel) allows usage in harsh environments where the controller is exposed to water or dust.
to top


Multiple options
Set value memory external selection

SV1 to SV4 can be selected by external contact. Control output OUT/OFF function or Auto/Manual control function is selectable.

Serial communication

Shinko protocol, Modbus ASCII and Modbus RTU can be used.

Heater burnout alarm output

Single phase or 3-phase heater burnout or deterioration can be detected.
For 3-phase, 2 pieces of CT are connected.

Heating/Cooling control output

One cooling action is selectable from: Air cooling (linear characteristic), oil cooling (1.5th power of the linear characteristic), water cooling (2nd power of the linear characteristic).
For cooling output type, relay contact or non-contact voltage output is usable.

to top

Dimensions

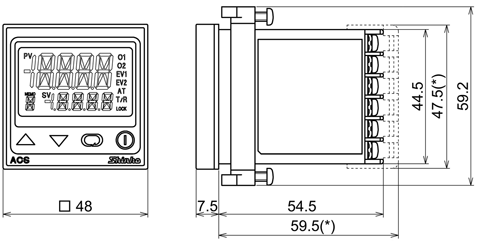

  ACS-13A External dimensions
(*) When a terminal cover (sold separately) is used.
to top
