| Digital Temperature Indicating Controllers |
|
| BCS3 |
|
The BCS3 is a new basic model that compactly combines all the functions required for a temperature controller.
- Simple Design for Easy Operation Settings
- Compact Design Packed with Features
|
|
| High-visibility characters (H12 x W6mm) |
We are enhancing visibility by increasing the display font size.
|
 |
| Easy-to-Operate Key Switch Design |
We have achieved a design that emphasizes the placement of keys and ease of pressing. By simplifying the setup options, it becomes easy to change settings quickly.

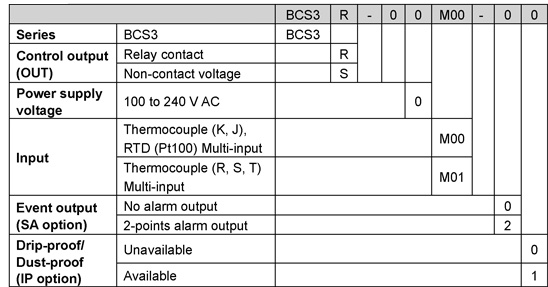

1 When selecting model MOO, it corresponds to thermocouples (K, J), while selecting MOl corresponds to thermocouples |
 |
| Thermocouples(K,J),RTD(Pt100) Multi-Input or Thermocouples (R,S,T) Multi-Input |
Thermocouples are used in various applications, including industrial uses, because they exhibit stable performance even in high and low temperature environments. BCS3 is a basic model that supports five types of thermocouples: K, J, R, S, and T(*1)
(*1) When selecting model MOO, it corresponds to thermocouples (K, J), while selecting MOl corresponds to thermocouples
|
 |
| Relay Contact or Non-Contact Voltage Output |
| ou can choose between control outputs: relay outputs with contact points and non-contact voltage outputs for SSR driving. Please specify your preference when placing your order according to your application. |
|
| By adding an option, you can use up to a total of 2 event outputs. |
|
| Dustproof and Waterproof Specifications(Front IP65 Structure) |
| IP65 structure for dust and water resistance Adopted to withstand harsh environments where dust and water exposure may occur. |
 |
 |
|
|
|
| Rated Scale |
|
| Input |
| Thermocouple |
K.J.R.S.T
(External resistance: 1 000 or less) |
| RTD |
Pt100,3-wire type
(Allowable input lead wire resistance: 100 or less per wire) |
|
| Power Supply Voltage |
100 to 240V AC 50/60Hz |
| Allowable Voltage Fluctuation Range |
85 to 264V AC |
|
|
| External Dimensions |
W48XH48XD68 (Depth of control panel interior. 60) mm |
| Mounting |
Flush |
| Case |
Flame-resistant resin (color: Black) |
| Panel |
Membrane sheet |
|
|
| Accuracy |
|
| Input Sampling Period |
500 ms |
|
|
| Control Action |
PID control (with Auto-Tuning Function)
Pl control: When Derivative Time Setting is Set to 0
PD control (with Auto-Reset Function): When Integral Time Setting is Set to 0
P control(with Auto-Reset Function): When Both Integral Time and Derivative Time Settings are Set to 0
ON/OFF control: When Proportional Band Setting is Set to 0
| Proportional Band (P) |
0 to 1000 or 2000 (Factory default at 10).
Setting it to 0 activates ON/OFF control.
If the input includes decimals, the range is 0.0 to 999.9 or 0.0 to 999.9.
Setting it to 0.0 also activates ON/OFF control. |
| Integral time(I) |
0 to 1000 seconds(Setting it to 0 disables integral action)(Factory default: 200 seconds). |
| Derivative time(D) |
0 to 300 seconds(Setting it to 0 disables derivative action)(Factory default: 50 seconds). |
| OUT proportional cycle |
1 to 120 seconds(Factory default: 30 sec for Relay contact. 3 sec for non-contact voltage). |
| ON/OFF hysteresis |
0.1 to 100.0 ()(Factory default: 1.0). |
| Output high limit, low limit |
0 to 100 %(Not applicable during ON/OFF control) (Factory defaults: Output low limit 0%, Output high limit 100%). |
|

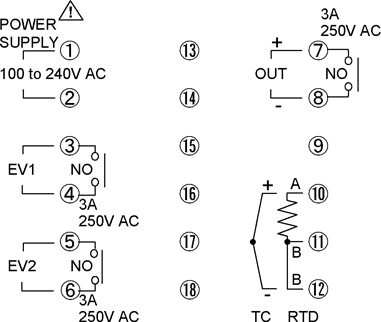

| Control Output |
| Relay contact 1a |
Control capacity: 3A 250V AC (resistive load).
1A 250V AC (inductive load.cosCl>=0.4).
Electrical lifespan: 100,000 cycles. |
Non-contact voltage
(for SSR drive) |
10+3V DC
maximum 20mA DC |
|
|
|
| Insulation Resistance |
500V DC 10M or more |
| Dielectric Strength |
Between input terminal and power terminal· 1.5kV AC for 1 minute
Between output terminal and power terminal: 1.SkV AC for 1 minute |
|
|
| Power Consumption |
Approximately 8VA |
| Ambient Temperature |
-10～55 |
| Ambient Humidity |
35～85%RH(non-condensing) |
| Weight |
Approximately 94g |
| Environmental Specifications |
RoHS directive compliant |
|
|
| Attached Functions |
Sensor correction, Set value lock, LED Display Area Selection,
Power Failure Countermeasures, Self-Diagnosis,
Automatic Cold Junction Temperature Compensation,
Burnout Detection(Over-Scale), lndication range and Control Range, Warm-up indication |
|
|
| Options |
Event Output
(Alarm Output 2 Points) |
Relay contact 1a.
Control capacity: 3A 250V AC (resistive load).
Electrical life: 100.000 cycles. |
| Loop Abnormal Alarm |
Detects Abnormalities at the Control End, such as Heater Disconnection or Sensor Disconnection. |
| Dustproof and Waterproof |
Front Panel IP65 |
|
|
|
| Included Accessories |
Mounting frame(1 piece), User manual(1 copy), Gasket A(1 piece, for optional dustproof and waterproof addition)
|
| Accessories Sold Separately |
Terminal cover |
|
|
|
|
| |

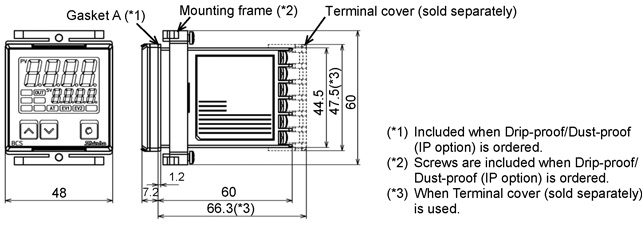

Dimensions (Scale: mm) |
| |
|
| |

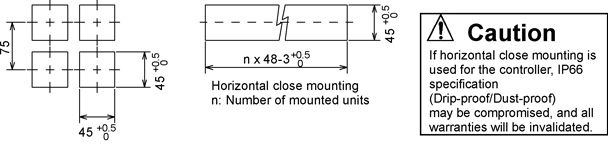

Panel cutout(Scale: mm) |
|
|
|
