Duct Inserted Type CO2 Sensor
DSD-100_200 Catalog
DSD-101-CO2 Instruction Manual
DSD-101-CO2

- Accuracy: 30 ppm (5 % of indicated value)
- Response characteristics: Within 1 minute (at 1.5 m/s wind velocity)
- Sensor can be inserted up to the desired length using the adjustable flange (sold separately).

- Model
- Dimensions
- Spec
- Terminal Arrangement



Model

DSD-101
- -
Measurement target -CO2 CO2 density
Measurement range -1 0 to 2000 ppm
-2 0 to 5000 ppm
Output A 4 to 20 mA DC
V 1 to 5 V DC
to top

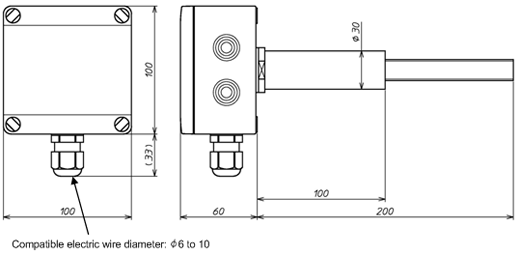

Dimensions

DSD-101-CO2 Dimension
to top


Spec
Rating
Measurement range 0 to 2000 ppm, 0 to 5000 ppm (must be specified)
Output 4 to 20 mA DC, 1 to 5 V DC (must be specified)
Supply voltage 24 V DC10%
General Structure
Mounting Adjustable flange DSDF-SQ80 recommended (sold separately)
Performance
Accuracy 30 ppm (5% of indication value)
Response characteristics Within 1 minute (at 1.5 m/s wind velocity)
Other
Power consumption Approx. 18 W
Operating environment Temperature: 0 to 50
Humidity: 5 to 95 %RH (non-condensing)
Storage environment Temperature: -20 to 60
Humidity: 5 to 95 %RH (non-condensing)
Weight Approx. 400 g
Accessories included Instruction manual: 1 copy
Environmental specification RoHS directive conformance
to top


Terminal Arrangement
DSD-101-CO2 Terminal Arrangement
OUT: Output
POWER: 24V DC
