Duct Inserted Type Humidity Sensor
DSD-100_200 Catalog
DSD-200-HA Instruction Manual
DSD-200-HA

Duct Inserted Type Humidity Sensor DSD-200-HA
- Accuracy: Within 5 %RH (at 23 )
- Response characteristics: Approx. 20 seconds (at 2 m/s wind velocity)
- Sensor can be inserted up to the desired length using the resin bracket.

- Dimensions
- Spec
- Terminal Arrangement

(Discontinued)


Dimensions

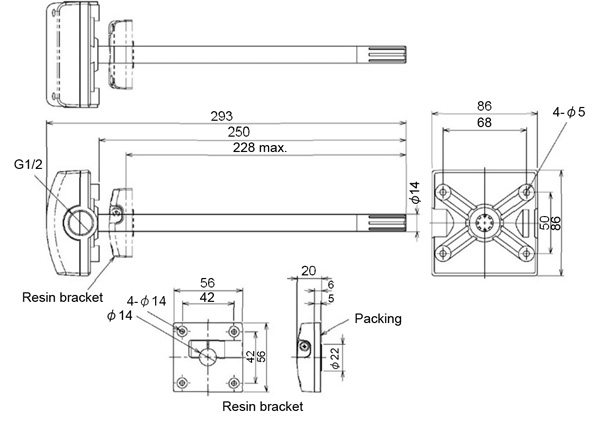

DSD-200-HA Dimensions
to top


Spec
Rating
Measurement range 5 to 95 %RH
Output 4 to 20 mA DC (Linear conversion corresponding to 0 to 100 %RH)
Max allowable load: 1 k max.
Supply voltage 24 V AC/DC 20 % 50/60 Hz
General Structure
Mounting Duct inserted, and fixed with the resin bracket.
Performance
Accuracy Within 5 %RH (at 23 )
Response characteristics Approx. 20 seconds (at 2 m/s wind velocity)
Other
Power consumption Approx. 1 VA (for 24 V AC)
Approx. 1 W (for 24 V DC)
Operating environment Temperature: -25 to 70
Humidity: Less than 95 %RH (non-condensing)
(Operating environment temperature:
Up to 50 : Less than 95 %RH,
50 to 70 : 70 %RH)
Storage environment Temperature: -25 to 70
Humidity: Less than 95 %RH (non-condensing)
(Operating environment temperature:
Up to 50 : Less than 95 %RH,
50 to 70 : 70 %RH)
Weight Approx. 170 g (Including resin bracket)
Accessories included Mounting screw: 4 pieces,
Resin bracket: 1 piece,
Packing: 1 piece,
Current/Voltage conversion resistor (RES-S06-250): 1 piece,
Cable grand (OA-W1608E): 1 piece,
Instruction manual: 1 copy
Environmental specification RoHS directive conformance
to top


Terminal Arrangement

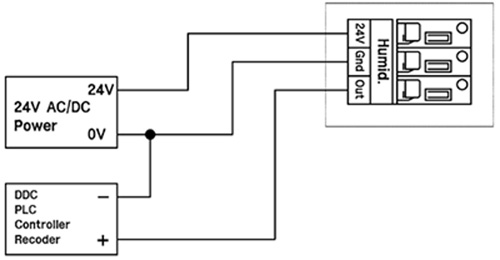

DSD-200-HA Terminal Arrangement
When using 1 to 5 V DC output, connect the provided Current/Voltage conversion resistor
(RES-S06-250) between Out - Gnd.
to top
