Communication Converter
IF-400 Catalog
IF-400 Instruction Manual
IF-400


IF-400
- Compact
- DIN rail mounted
- Communication protocola
- Repeater function
- Dimensions



Compact
22.5 x 75 x 100mm (W x H xD)
to top


DIN rail mounted
Easy to mount, remove and maintain


to top



Communication protocol
Shinko protocol and Modbus protocol (ASCII mode, RTU mode) are available

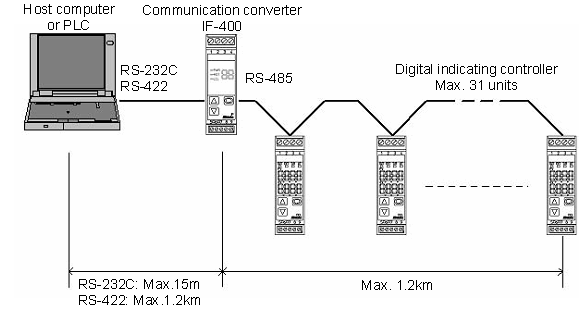

IF-400 Communication

to top


Repeater function
IF-400 can be used as a repeater.

This function is used when connecting more than 32 units of digital indicating controller, or when extending the communication line 1.2km or longer. The repeater will be the 31st connected unit, and another 31 units of digital indicating controller can be connected to the output side of the repeater.

A maximum of 3 units of repeater can be connected, and up to 95 units of controller can be connected. (Controller address is limited to 95.)

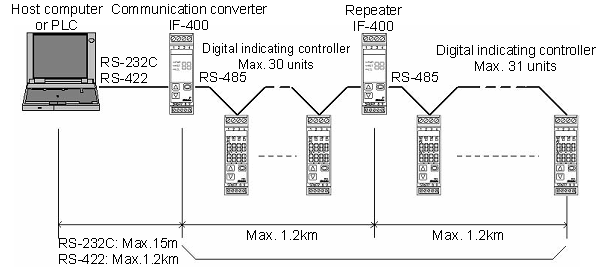

IF-400 Repeater

to top


Dimensions

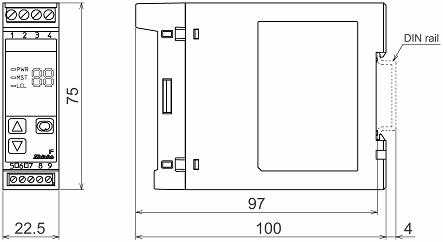

External dimensions (Scale: mm)

IF-400 External dimensions
