Digital Indicating Controllers
JCL-33A Catalog
JCL-33A Instruction Manual
JCL-33A Communication Instruction Manual
JCL-33A series

JCL-33A Photo
- Compact
- Multi-input
- 2-point Event output
- Simplified programmable controller
- Converter function
- External operation
- Delay timer function
- Drip-proof/Dust-proof
- Serial communication (optional)
- Monitoring software
- Dimensions




Compact
48 x 24 x 98.5mm (W x H x D)
to top


Multi-input
A total of 18 types of input are available from thermocouple (10 types), RTD (2 types), DC current (2 types) and DC voltage (4 types).
Available for use in a variety of machines, such as injection molders, extruders, bag makers, packagers, dryers and electric furnaces.
As the input sampling period is very short (0.25 seconds), this controller is applicable to a wide range of processes.
to top


2-point Event output
2-point Event output (relay contact, open collector) is a standard feature.
Selectable from alarm action, timer function and pattern end function by keypad operation.
to top


Simplified programmable controller

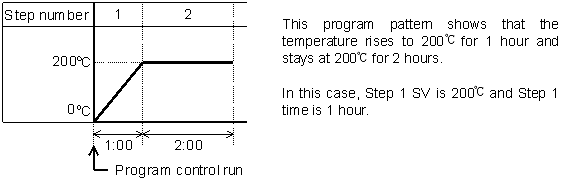

A 1 pattern/9 step programmable controller function is a standard feature. JCL-33A_program_pattern
to top

Converter function
The input signal of the thermocouple, RTD, Direct current and DC voltage can be converted to insulated 4 to 20mA DC.
to top

External operation
Selectable by keypad from Set value memory external selection, OUT/OFF (RUN/STOP) external selection and Timer function.
to top

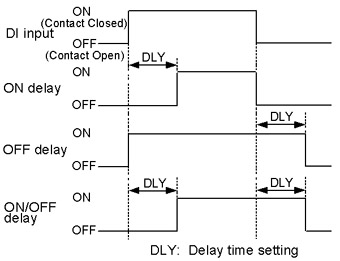

Delay timer function
Delay actions are operable by an external input signal.
Selectable from ON delay, OFF delay and ON/OFF delay by keypad.
Delay timer function
to top

Drip-proof/Dust-proof
IP66 structure (for the front panel) allows usage in harsh environments, such as exposure to water or dust.
to top


Serial communication (optional)
Shinko protocol and Modbus protocol (Modbus ASCII, Modbus RTU) are available.
Instrument number and communication protocol can be selected by keypad.
to top

Monitoring software
The monitoring software, SWM-JCL01M, has various functions, such as All channels display,
1 channel display, Data logging, etc.
Main display
Monitoring software (SWM-JCL01M) Main display

Bar graph display
Monitoring software (SWM-JCL01M) Bar graph display

1 channel display
Monitoring software (SWM-JCL01M) 1 channel display

Setting display
Monitoring software (SWM-JCL01M) Setting display

Chart display
Monitoring software (SWM-JCL01M) Chart display

Logging display
Monitoring software (SWM-JCL01M) Logging display

All channels setting display
Monitoring software (SWM-JCL01M) All channels setting display
to top

Dimensions

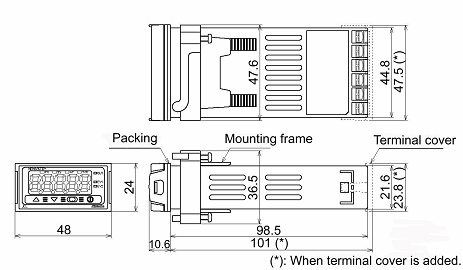

  External dimensions (Scale: mm)
  JCL-33A External dimensions
