| 100% Die-cast Aluminium unit |
| Made of light, durable die-cast aluminium |
|
|
|
| Stainless steel Detector wing |
| Rust-resistant detector wing |
|
|
| Simple, Tough, More reliable |
Simple, durable structure
Rarely malfunctions. Low maintenance |
|
| Dust-proof/Drip-proof IP66 |
IP66 structure protects external mounting from harsh environments such as dust and water splashes.
(excludes parts from the mounting nut to detector wing) |
|
| Small, Cost-effective, Easily mounted |
| Compact, easy mounting and low cost |
|
|
|

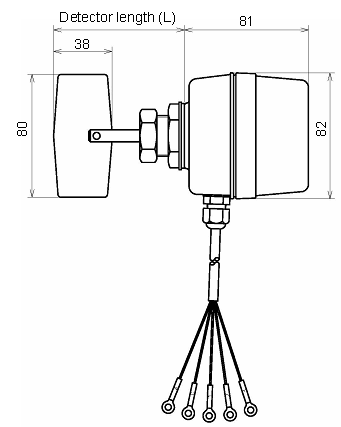

| Dimensions (Scale: mm) |
 |
| Panel cutout (Scale: mm) |
 |
|
|
| Specifications |
| Detecting torque |
0.049N-m(0.5kg-m) or more (Fixed) |
| RPM |
1rpm(min-1)(60Hz) |
| Action |
Detector wing revolution by motor |
| Supply voltage |
100V, 110V, 115V, 200V, 220V, 230V, 240V AC 50/60Hz
Please specify. |
| Allowable voltage fluctuation |
Within  15% of the rated voltage |
| Contact capacity |
3A 250V AC (resistive load) |
Ambient
temperature |
0 to 55 |
Wing shaft
length |
(L)=85mm, 100mm, 150mm, 200mm, 250mm
Please specify. |
| Mounting |
Fastened by nut (panel board: Max. 7mm) |
| Material |
Case: Aluminium die-cast
Cover: Aluminium die-cast
Nut: Stainless steel
Detector shaft: Stainless steel,  8.0mm
Detector wing: Stainless steel t1.5mm |
| Lead wire |
5-wire cabtyre cord, Length: 2m |
| Weight |
(L)=85mm: Approx. 645g
(L)=100mm: Approx. 650g
(L)=150mm: Approx. 670g
(L)=200mm: Approx. 690g
(L)=250mm: Approx. 710g
including 5-wire cabtire cord. |
| Color |
Case, cover: 7.5BG4/2.5(Munsell scale) |
Dust-proof/
Drip-proof |
IP66 (excluding parts from the mounting nut to detector wing) |
|
|
|
 |
 |
|

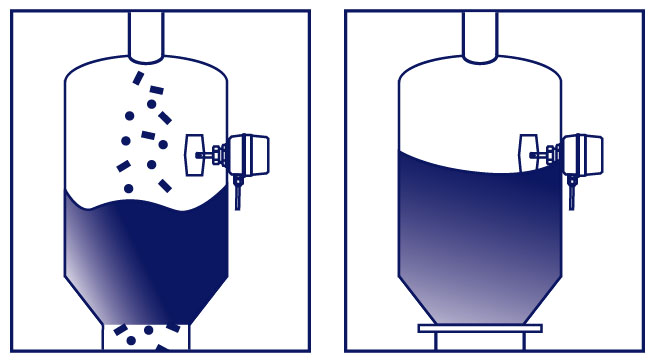

Level detection for grain and woodchip silos,
air-propelled pellet and molding sand tanks, etc.
|
|
|
|
