Communication Type Temperature Control Unit
NCL-13A
NCL-13A Catalog
NCL-13A Instruction Manual



NCL-13A Photo
- System configuration
- Small, space saving
- Reduced wiring
- Multi-input, High-speed sampling
- Enhanced communication functions
- Monitoring software
- Dimensions


System configuration
Monitoring and setting via Shinko communication converter IF-400

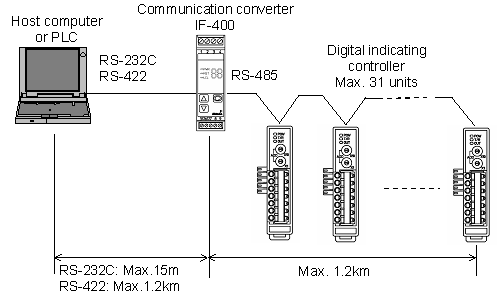

NCL-13A System configuration example 1

The IF-400 can be used as a repeater as well as a communication converter.

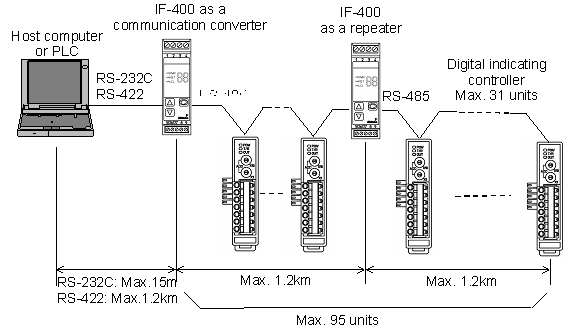

A maximum of 95 NCL-13A units (communication line Max. 4.8km) can be connected using the IF-400 as a repeater.

NCL-13A System configuration example 2

The Monitoring software SWM-NCL01M can be used for monitoring and setting of the NCL-13A.
to top



Small, space saving
17.5 x 75 x 85mm (W x H x D) Easy mounting to the DIN rail.
Its compactness also allows easy mounting in limited space.
to top



Reduced wiring

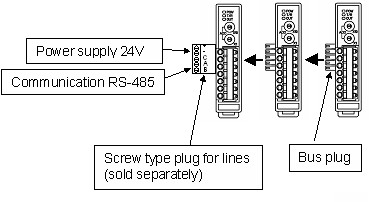

Bus plugs enable multiple connection of the NCL-13A units. The power and communication lines are connected via a screw type plug for lines through the bus plug of the NCL-13A.
NCL-13A Wiring (Power and Communication lines)

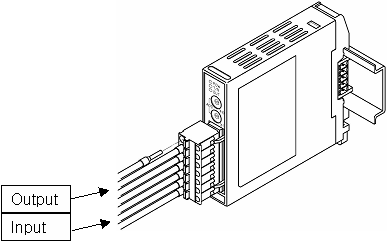

A screwless spring type plug is used for input and output.
The plug is also removable from the NCL-13A unit for wiring.

NCL-13A Wiring (Input and Output)
to top


Multi-input, High-speed sampling
18 types of input such as thermocouple (10 types), RTD (2 types), Direct current (2 types) and DC voltage (4 types) are available.
The NCL-13A can perform temperature control for various machines such as injection molders, extruders, packagers, bag makers, dryers and electric furnaces.
A fast 0.25 second sampling period allows applications for various processes.。

to top

Enhanced communication functions
Shinko protocol and Modbus protocol (Modbus ASCII, Modbus RTU) are usable.

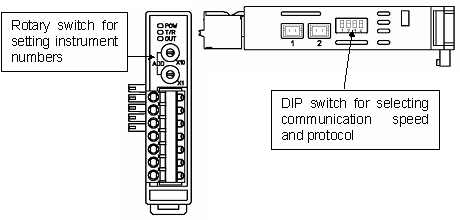

Instrument numbers can be set by the Rotary switch, and communication protocol can be selected by the DIP switch.
NCL-13A Communication parameter setting
to top

Monitoring software
The monitoring software SWM-NCL01M has functions such as all channels display, one channel display, data logging, setup, all settings at one time, etc. Main display
Monitoring software (SWM-NCL01M) Main display

Bar graph display
Monitoring software (SWM-NCL01M) Bar graph display

1 channel display
Monitoring software (SWM-NCL01M) 1 channel display

Setting display
Monitoring software (SWM-NCL01M) Setting display

Chart display
Monitoring software (SWM-NCL01M) Chart display

Logging display
Monitoring software (SWM-NCL01M) Logging display

All channels setting display
Monitoring software (SWM-NCL01M) All channels setting display
to top

Dimensions
NCL-13A External dimensions
to top
