Power Controller
PA-200 Catalog
PA-200 Instruction Manual
PA-200

PA-200 Photo
- Precise control, applicable for inductive loads (H series)
- Noiseless - ideal for computer lines (Z series)
- Also available for 3-phase control
- Model
- Dimensions
- Spec



Precise control, applicable for inductive loads (H series)
PA-200-H series is a power controller with a phase control system.
Precise control with continuous power adjustment.
Applicable to inductive loads such as motors and solenoids.


Noiseless - ideal for computer lines (Z series)
PA-200-Z series is a power controller with a zero-cross frequency division system. This means that extremely low switching noise is generated, so there are no harmful effects in peripheral computer lines.


Also available for 3-phase control
A range of products with 3-phase control can be provided.
For the 3-phase control system, zero-cross frequency division control system is not available.


Model

PA-2
- ,
Rated current 15 15A
30 30A
60 60A
100 100A
150 150A
Control system H Phase control (Single-phase)
Z Zero-cross frequency division control (Single-phase)
H3 Phase control (3-phase)
Option CC Constant current control (with voltage limiter)
CV Constant voltage control (with current limiter)
AL Peak over-current alarm


Dimensions
  PA-215-H, PA-230-H

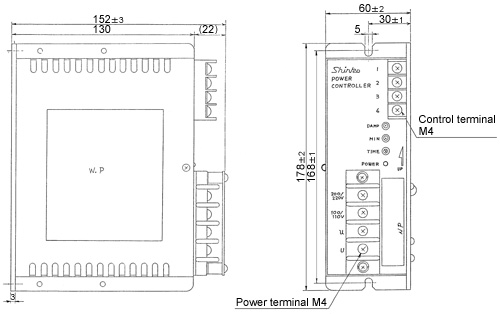

PA-215-H_PA-230-H External dimensions

  PA-260-H

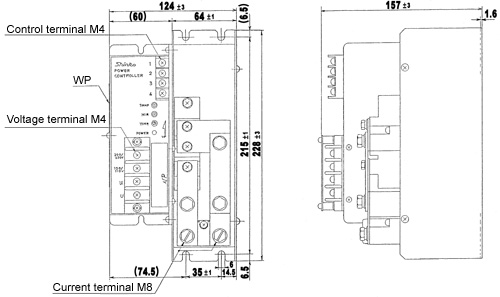

  PA-260-H External dimensions

  PA-2100-H

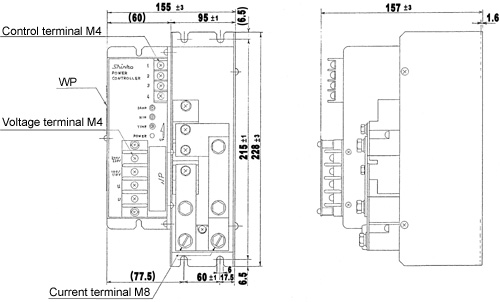

  PA-2100-H External dimensions

  PA-2150-H

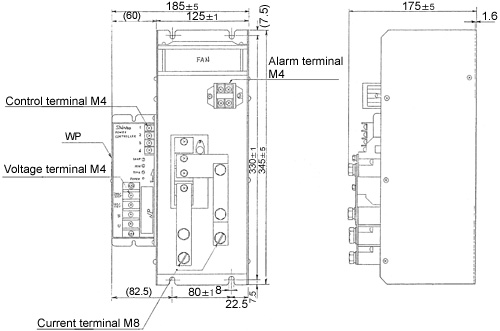

  PA-2150-H External dimensions

  PA-215-H3, PA-230-H3

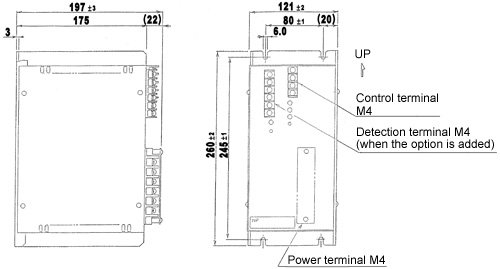

  PA-215-H3_PA-230-H3 External dimensions

  PA-260-H3

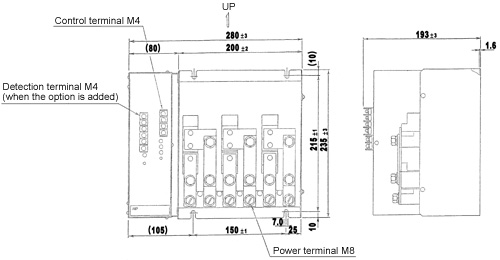

  PA-260-H3 External dimensions

  PA-2100-H3

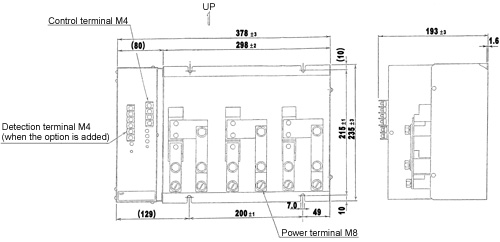

  PA-2100-H3 External dimensions

  PA-2150-H3

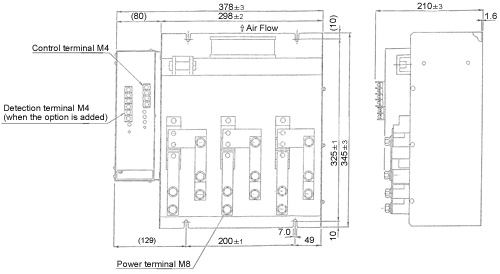

  PA-2150-H3 External dimensions

to top


Spec
Control System
Control system Specify one from the following.
-Single-phase control system (H series)
-Zero-cross frequency division control sytem (single-phase) (Z series)
-3-phase control system (H3 series)
(For 3-phase control system, zero-cross frequency division system is not available.)
Rating
Number of phase Specify one from the following.
-Single-phase
-3-phase
Rated current 15A, 30A, 60A, 100A, 150A
Input signal 4 to 20mA DC, Relay contact input, Manual setting, 0.8 to 4V DC
Rated voltage 100/110V AC, 200/220V AC 50/60Hz common use
For 150A, specify one from the following.
-100/110V AC 50/60Hz (Impossible to designate for 3-phase.)
-200/220V AC 50/60Hz
Output adjustment range 0 to 98% of rated voltage
Gradient adjustment range 0 to 100% (DAMP)
Voltage fluctuation range Within 10% of rated voltage
Soft-up For only Single-phase control system (H series),
0.2 to 5 sec, variable (Default: 0.2 sec)
General Structure
External dimensions
Model
W x H x D (mm)
Single-phase (H, Z series)
3-phase
PA-215 60x178x152 121x260x197
PA-230 60x178x152 121x260x197
PA-260 124x228x157 280x235x193
PA-2100 155x228x157 378x235x193
PA-2150 185x345x175 378x345x210
Mounting Surface mounting
Insulation, Dielectric Strength

External dimensions
Model
W x H x D (mm)
Single-phase (H, Z series)
3-phase
PA-215 60x178x152 121x260x197
PA-230 60x178x152 121x260x197
PA-260 124x228x157 280x235x193
PA-2100 155x228x157 378x235x193
PA-2150 185x345x175 378x345x210
Mounting Surface mounting
Heating Value
Heating value Single-phase (H, Z series)
Output
current
15A 30A 60A 100A 150A
Internal
heating
value
22W 36W 60W 100W 175W

3-phase
Output current 15A 30A 60A 100A 150A
Internal heating value 75W 114W 186W 300W 430W

Other
Ambient temperature Operating temperature: 0 to 60 (allowable current decreases at 40 or higher)

Output decreasing rate:PA-200 Ambient temperature
Weight
Model Weight
Single-phase
(H series)
Single-phase
(Z series)
3-phase
PA-215

1.1kg

1.0kg 2.5kg
PA-230 1.1kg 1.1kg 3.0kg
PA-260 3.0kg 3.0kg 6.0kg
PA-2100 3.5kg 3.5kg 9.0kg
PA-2150 6.0kg 6.0kg 12.0kg
Accessories Instruction manual 1 copy
