PA-3000

Power Controllers PA-3000

- Compact, lightweight

- Phase control/Frequency division control selectable.

- Dimensions

(Discontinued)



Compact, lightweight
    PA-3020-HZ(20A), PA-3030-HZ(30A): Approx. 1.0kg
    PA-3040-HZ(40A), PA-3050-HZ(50A): Approx. 1.3kg
    PA-3075-HZ(75A), PA-3100-HZ(100A): Approx. 1.9kg


Phase control/Frequency division control selectable.
Phase control system allows near-infinite resolution.
Frequency division control system suppresses noise.

to top

Dimensions

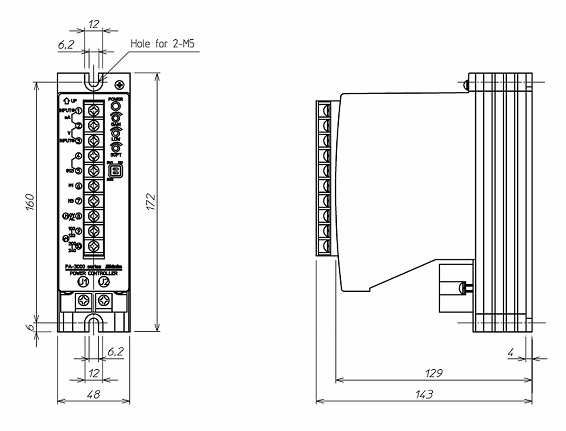

  PA-3020-HZ, PA-3030-HZ

PA-3020_3030 External Dimensions

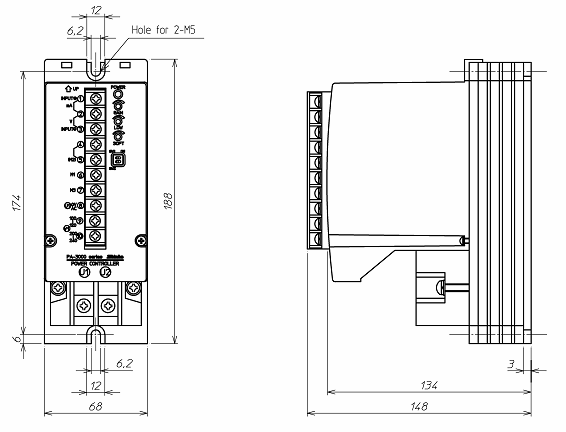

  PA-3040-HZ, PA-3050-HZ
  PA-3040_3050 External Dimensions

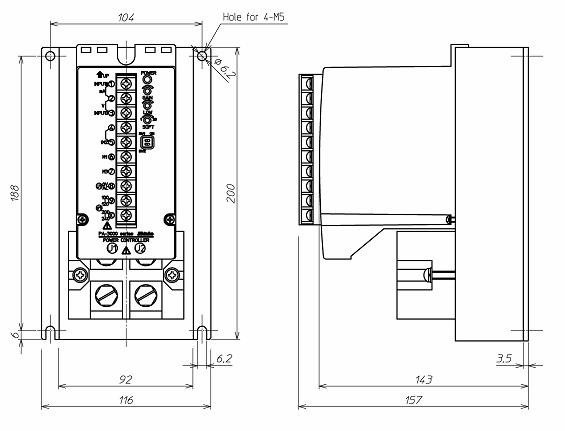

  PA-3075-HZ, PA-3100-HZ
  PA-3075_3100 External Dimensions
