Digital Deviation Indicating Temperature Controller
Spec sheet
RC-600 Instruction Manual

RC-600

Digital Deviation Indicating Temperature Controller RC-600
- Simple settings just like an analog controller
- LED deviation display
- Control action, alarm type selectable with the DIP,
   Rotary switches

- Model
- Spec
- Terminal Arrangement
- Dimensions


Simple settings just like an analog controller
Instead of a thumbwheel switch, the UP and DOWN keys are used for each digit setting (up to 100s digit).
to top



LED deviation display
Deviation between PV and SV is indicated with lit segments in LED bar.
to top



Control action, alarm type selectable with the DIP, Rotary switches
Control actions (PD, ON/OFF action) are selectable with the DIP switch.
Alarm types are selectable with the Rotary switch from a choice of: No alarm action, High limit alarm, High limit alarm with standby, Low limit alarm, Low limit alarm with standby, High/Low limits alarm, High/Low limits alarm with standby, Process high alarm, Process low alarm.

to top


Model

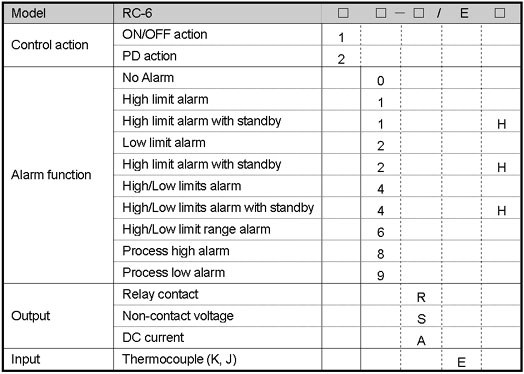

Model RC-600 Models
to top


Spec
Rating
Rated scale Thermocouple input
Input Scale range Resolution
E K 0 to 400 1
J 0 to 400 1

Input Thermocouple: K, J
Supply voltage 100 to 240V AC 50/60Hz
Allowable voltage fluctuation 85 to 264V AC
General structure
Dimensions 48x96x115mm (WxHxD)
Mounting method Flush
Material Case: Flame-resistant resin
Color Dark gray
Front panel

Membrane sheet
RC-600 Front_panel

Indication structure
Deviation indicator Indicates deviation.

11-segment, Red/Orange/Green LED bar, size 4x2 mm (HxW)
Deviation (from -20 to +20) between SV and PV is indicated (lights).
The left (-) side LED flashes while in underscale.
The right (+) side LED flashes while in overscale.

SV display Indicates SV. 7-segment Green LED display 3-digit
Character size: 8.8x4.9mm (HxW)
Action indicators ON indicator (green)

Lights when the main output is ON. (For DC current output type, flashes corresponding to the MV in 250ms cycles.)

OFF indicator (red) Lights when the main output is OFF. (Unlit in case of DC current output type)
ALARM indicator (red) Lights when alarm is ON.

Indication performance
Indication accuracy Within 1 segment (Resolution 4)
Input sampling period 250ms
Control performance
Setting accuracy Within 0.3% of each input span1 digit, or 2, Whichever is greater
Control action PD action (with Auto-reset function)
ON/OFF action
Proportional band (P) 10
Derivative time (D) 50sec
Proportional cycle Non-contact voltage output: 3sec
Relay contact output: 30sec
Not available for DC current output
ON/OFF hysteresis 1

Control output
Relay contact, 1c Control capacity: 5A 250V AC (resistive load),
2A 250V AC (inductive load cos=0.4)
Electrical life: 100,000 cycles
Non-contact voltage (for SSR drive) 12V DC Max. 40mA DC (Short circuit protected)
DC current 4 to 20mA DC (Resolution: 12000)
Load resistance: Max. 600

Standard functions
Alarm The following types are selectable with the Rotary switch.
-No alarm action
-High limit alarm
-High limit alarm with standby
-Low limit alarm
-Low limit alarm with standby
-High/Low limits alarm
-High/Low limits alarm with standby
-High/Low limit range alarm
-Process high alarm
-Process low alarm
Setting accuracy The same as the Setting accuracy
Action ON/OFF action
Hysteresis 1
Output Relay contact 1c, Control capacity : 3A 250V AC (resistive load), 1A 250V AC (inductive load cos=0.4), Electrical life: 100,000 cycles

Attached function Power failure countermeasure, Self-diagnosis, Automatic cold junction temperature compensation, Burnout, User specified spec.
Insulation, Dielectric strength
Insulation resistance 10M or more, at 500V DC
Dielectric strength Between Input terminal-Power terminal, Between Output terminal -Power terminal---1.5kV AC for 1 minute
Other
Power consumption Approx. 4VA
Ambient temperature 0 to 50
Ambient humidity 35 to 85%RH (non-condensing)
Weight Approx. 280g
Accessories

Mounting bracket: 1 set, Instruction manual: 1 copy

to top

Terminal arrangement

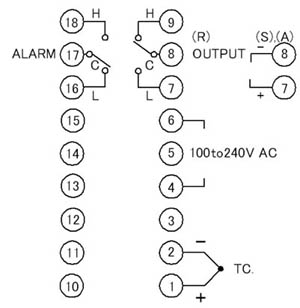

RC-600 Terminal arrangement
100 to 240V AC: Supply voltage
ALARM: Alarm output
OUTPUT: Control output
TC: Thermocouple input
to top

Dimensions

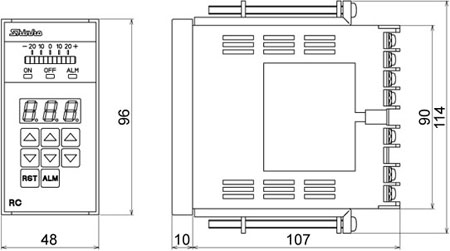

  External dimensions (Scale: mm)
  RC-600 External dimensions

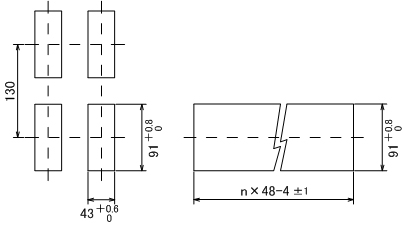

  Panel cutout (Scale: mm)


RC-600 Panel cutout
  Lateral close mounting
n: Number of units mounted


to top
