Infrared Temperature Sensor
RD-500 series Catalog
RD-500 Instruction Manual
RDP-24 Instruction Manual

RD-500
RDP-24
RD-500 series

Infrared Temperature Sensor RD-500 series
- 5 Measurable Close Focus Type and Field of View Type available
- Easilly selectable from a simple lineup
- 4 types all with the same size
- Temperature range: 0 to 250℃, 0 to 500℃
- CE marking acquired
Model
External Dimensions
Spacifications



Model
Model

Field of View
Temperature Range
Output
RD-502-M0 Field og view 2:1 0 to 250 DC current 4 to 20mA DC (2-wire type)
RD-515-M0 15:1 0 to 250
RD-515-H0 0 to 500
RD-5CF-H0 Close focus 0 to 500
to top

External Dimensions(Scale: mm)

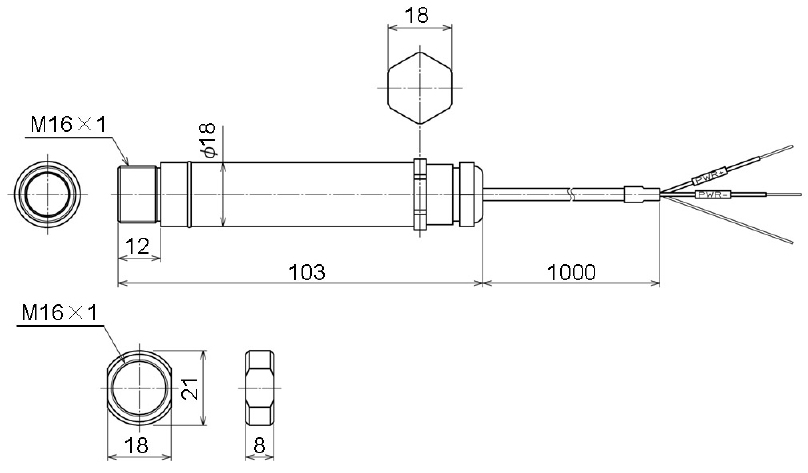

RD-502-M0, RD-515-M0, RD-515-H0
RD-502-M0, RD-515-M0, RD-515-H0 External Dimensions

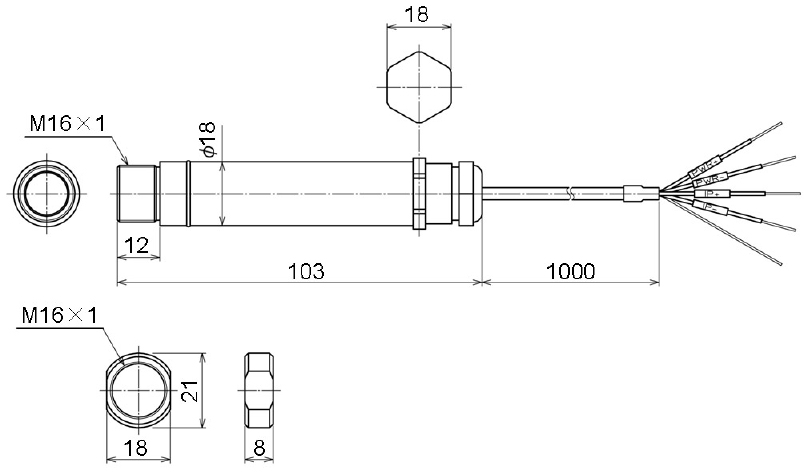

RD-5CF-H0
RD-5CF-H0 External Dimensions

to top


Specifications
Rating
Temperature Range
Model Temperature Range
RD-502-M0, RD-515-M0 0 to 250
RD-515-H0 0 to 500
RD-5CF-H0 0 to 500

Power Supply 24 V DC(Max 28 V DC), 25 mA
General Structure
External Dimensions 18 x 103 mm (diameter x length)
Mounting Fixed using a mounting bracket
(The mounting bracket is sold separately)
Material Stainless steel SUS304
Drip-proof/Dust-proof IP65
Cable Length 1 m
Performance
Accuracy 1 % of reading or 1 whichever is greater
Repeatability 0.5 % of reading or 0.5 whichever is greater
Emissivity Fixed at 0.95
0.200 to 1.000 [When the emissivity adjuster (PTA,
sold separately) is used]
0.200 to 1.000 [When the dijital indicating controller
(ACS-13A-x/A, sold separately) is used]
Response 240 ms(90 % response)
Spectral Range 8 to 14 m
Max. Load Resistance 900 (DC current output)(for 24 V DC)
Diameter of target spot measured versus distance from sensing head
Model Diameter of target spot measured versus distance from sensing head
RD-502-M0
(Field of view 2:1)
RD-502-M0 Diameter of target spot measured versus distance from sensing head
RD-515-M0, RD-515-H0
(Field of view 15:1)
RD-515-M0, RD-515-H0 Diameter of target spot measured versus distance from sensing head
RD-5CF-H0
(Close focus)
RD-5CF-H0 Diameter of target spot measured versus distance from sensing head

Other
Ambient Temperature 0 to 70
Ambient Humidity Max. 95 %RH (non-condensing)
Weight Approx. 100 g (Cable included)
Accessories included Instruction manual: 1 copy
Accessories Sold Separately Fixed-mounting bracket (FBS)
Fixed-mounting brecket FBS


Adjustable-mounting bracket (ABS)
Adjustable-mounting bracket ABS


Air purge collar (APSN)
Air purge collar APSN


Air purge collar (APSW)
Air purge collar APSW


Digital indicating controller (Emissivity setting function added)(ACS-13A-x/A)
Digital indicating controller (Emissivity setting function added) ACS-13A-x/A


Power supply for the RD-500 (RDP-24)
Power supply for the RD-500 RDP-24


Safety Standards RoHS directive compliant
CE marking compliant
