Infrared Temperature Sensor
RD-600 Catalog
RD-600 Instruction Manual
RD-600 series

Infrared Temperature Sensor RD-600 series
- Compact infrared temperature sensor using 2.3 m wavelength.
For measuring lustrous metal surfaces, secondary processed metals, ceramic materials, etc.
- Can also measure through general and heat-resistant glass.
- Compact sensing head with 14 mm diameter and a length of 28 mm - easy to use anywhere.
- Can be used in ambient temperature up to 85  without needing to be cooled.
- Possible to measure low temperatures of metal surfaces from 50 .
- Objects with low emissivity can easily be measured at a short wavelenth of 2.3 m.

- Model
- Dimensions
- Spec
- Terminal Arrangement




Model
Model
Spectral range
Field-of-View
Temperature Range
RD-622-LM 2.3 m 22:1 50 to 400  (*)
RD-675-HM 2.3 m 75:1 150 to 1000  (*)
(*) Temperature of target object > Sensing head temperature + 25

Dimensions

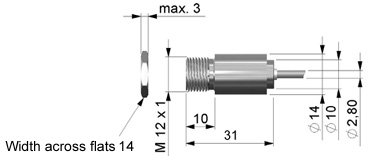

Sensing Head (Scale: mm)
RD-600 Sensing Head External dimensions

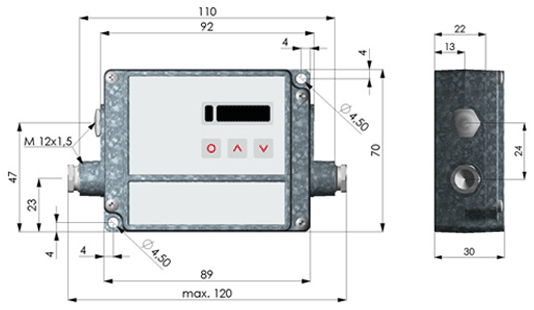

Electronics Module (Scale: mm)
RD-600 Electronics Module External dimension

Accessory Sold Separately: Mounting bracket (TFB) (Scale: mm)
RD-600 Mounting bracket (TFB) External dimensions

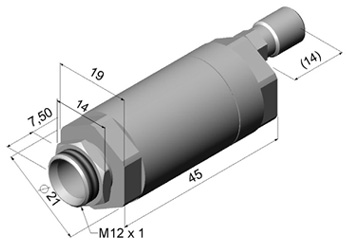

Accessory Sold Separately: Air purge collar (ATAL) (Scale: mm)
RD-600 Air purge collar (ATAL) External dimensions

Accessory Sold Separately: Sighting tube - 40 mm (AST40APA)
(for RD-622-LM) (Scale: mm)
)
RD-622-LM Sighting tube - 40 mm (AST40APA) External dimensions

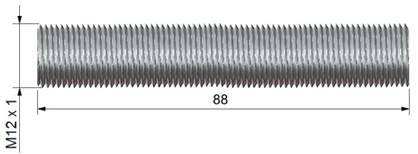

Accessory Sold Separately: Sighting tube - 88 mm (AST88APA)
(for RD-675-HM) (Scale: mm)
RD-675-HM Sighting tube - 88 mm (AST88APA) External dimensions

Accessory Sold Separately: Sighting tube adapter (included) (Scale: mm)
RD-600 Sighting tube adapter (included) External dimensions

to top


Spec
Rating
Temperature range RD-622-LM: 50 to 400  (*)
RD-675-HM: 150 to 1000  (*)
(*) Temperature of target temperature > Sensing head temp. + 25
Supply voltage 8 to 36 V DC, Max. 100 mA
General Structure
External dimensions Sensing head: 31 x 14 mm, M12 x 1
Electronics module: 89 x 70 x 30 mm (W x H x D)
Mounting Sensing head: Mounting bracket (sold separately)
Electronics module: Mounting by screws
Material Sensing head: Stainless steel
Electronics module: Die-cast zinc
Drip-proof/Dust-proof IP65
Cable length 3 m
Cable diameter 2.8 mm
Safety standards CE mark certified
Display

LCD display

5 digits
Backlight:
When normal: Green
When Low limit alarm is ON: Blue
When High limit alarm is ON: Red
When both Low limit alarm output and High limit alarm output are ON: Purple
Performance
System accuracy(*1) (0.3 % of reading + 2 ) (*2)
however, thermocouple output accuracy: 2.5  or 1 % of reading, whichever is greater
Spectral range 2.3 m
Field-of-view RD-622-LM: 22:1
RD-675-HM: 75:1
Repeatability(*1) (0.1 % of reading + 1 ) (*2)
Temperature coefficient(*3) 0.05 / or 0.05 %/, whichever is greater
Temperature resolution 0.1  (*2)
Response time 1 ms (90 % response) (*4)
Emissivity 0.100 to 1.100
Transmissivity 0.100 to 1.100
Signal processing Average, Peak Hold, Valley Hold
(*1) Ambient temperature 23
(*2) =1/Response time 1 sec
(*3) When ambient temperature (sensing head) is lower than 18  and higher than 28
(*4) Dynamic adaptation at low signal levels
Output
Analog output Selectable from 0 to 20 mA DC, 4 to 20 mA DC, 0 to 5 V DC, 0 to 10 V DC, thermocouple K, J
Direct current 0 to 20 mA DC, 4 to 20 mA DC
Load resistance: 500  or less
DC voltage 0 to 5 V DC, 0 to 10 V DC
Load resistance: 100 k or more
Thermocouple K, J
Output impedance: 20
Alarm output High limit alarm
Open collector output
Capacity: 24 V DC, Max. 50 mA
Attached Functions
Warm-up indication After the power is turned ON, the LCD display indicates [ .I.N.I.T ] for several seconds.
After that, the temperature of the target object will be indicated on the LCD display.
Backlight of the LCD display differs depending on the alarm status.
Backlight Color Switching If alarm is turned ON, backlight of the LCD display differs depending on the RD-600 status.
RD-600 Status
Backlight
When normal Green
When Low limit alarm output is ON Blue
When High limit alarm output is ON Red (Open collector output ON)
When both Low limit alarm output and High limit alarm output are ON Purple
(High limit alarm output: Open collector output ON)

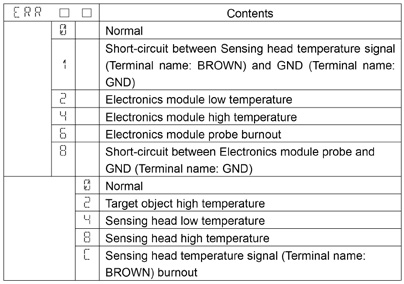

Error message When errors occur, an error message will appear.
(Backlight: Green)
RD-600 Error message
Others
Ambient temperature Sensing head: -20 to 85
Electronics module: 0 to 65
Storage temperature Sensing head: -40 to 85
Electronics module: -40 to 85
Ambient humidity 10 to 95 %RH (non-condensing)
Vibration (sensing head) IEC 68-2-6: 3 G, 11-200 Hz, x,y,z directional
Shock (sensing head) IEC 68-2-27: 50 G, 11 ms, x,y,z directional
Weight Sensing head: 40 g
Electronics module: 420 g
Accessories included Instruction manual: 1 copy
Nut: 1 piece
Accessories sold separately Mounting bracket (TFB) (Scale: mm)
RD-600 Mounting bracket(TFB)

Air purge collar (ATAL)
RD-600 Air purge collar(ATAL)

Sighting tube - 40 mm (AST40APA) (for RD-622-LM)
RD-622-LM Sighting tube - 40mm (AST40APA)


Sighting tube - 88 mm (AST88APA) (for RD-675-HM)
RD-675-HM Sighting tube - 88mm (AST88APA)


Sighting tube adapter (included)
RD-600 Sighting tube adapter

to top

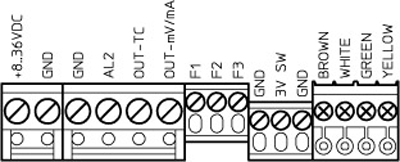

Terminal Arrangement
RD-600 Terminal arrangement
Terminal Name
Contents
+8..36 VDC Power supply
GND GND (Power supply)
GND GND (Internal input /output)
AL2 High limit alarm output (Open collector output)
OUT-TC Analog output (Thermocouple K, J)
OUT-mV/mA Analog output (DC voltage, current)
F1-F3 Not used
GND Not used
3V-SW Not used
GND Not used
BROWN Sensing head temperature signal (*)
WHITE Sensor GND (*)
GREEN Sensor power supply (*)
YELLOW Target temperature signal (*)
(*) Connected prior to being shipped.
to top
