Solid State Relay
SA-500 Catalog
SA-500 Instruction Manual
SA-500

- Keeps the cost down for customized systems
- Built-in 'varistor' for absorbing external surges
- Easily viewable LED status indicator
- Highly insulated: dielectric strength between input and output: 4000 V
- Output side terminal cover is standard. (Input side is optional.)

- Model
- Dimensions
- Spec




Model

SA-5
-
Maximum load current 15 15 A
25 25 A
40 50 A
Output Z Zero voltage switching system

Dimensions

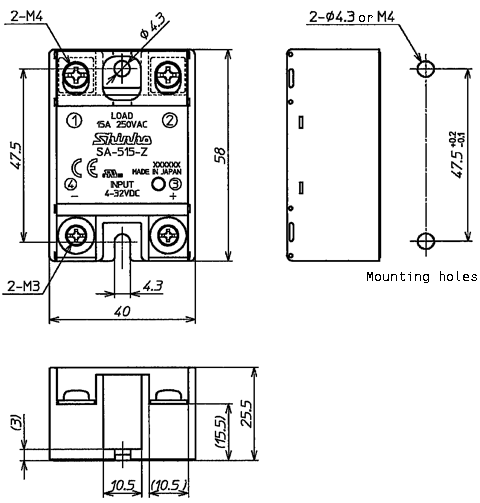

  SA-515-Z, SA-525-Z, SA-540-Z

SA-500 External Dimensions

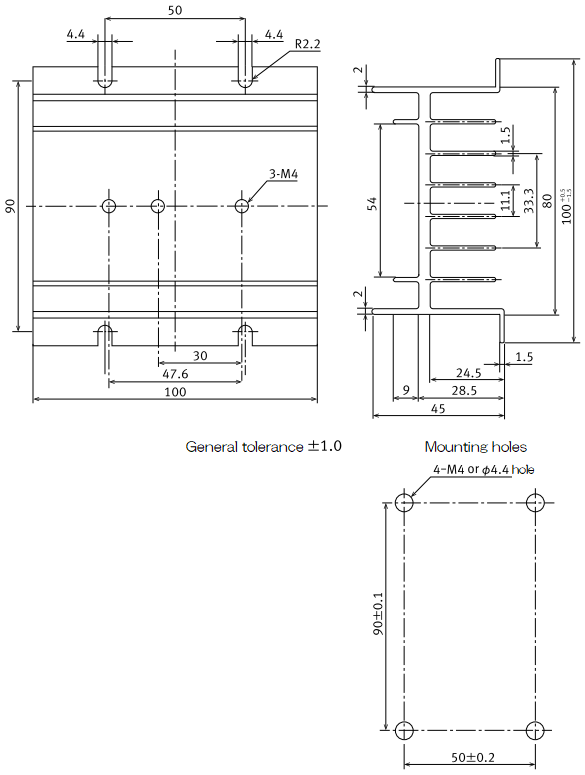

  Heat Sink AQP813 (for SA-515-Z, SA-525-Z) (Sold separately) (Scale: mm)

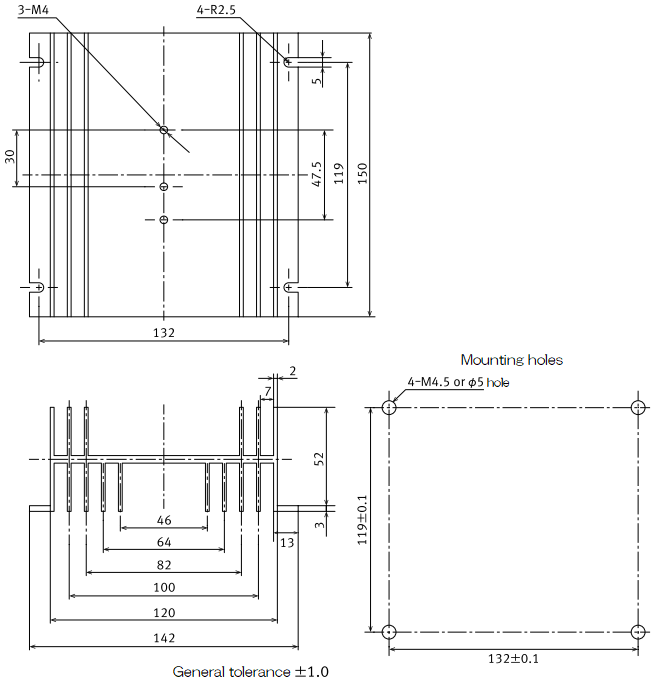

  Heat Sink AQP815 (for SA-540-Z) (Sold separately) (Scale: mm)

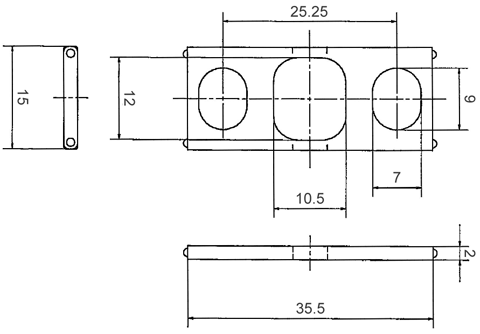

  Terminal Cover (TC-SA5) (Sold separately) (Scale: mm)
  Terminal Cover External dimensions

to top


Spec
Rating

Rating (At 20 of ambient temperature)

Model
SA-515-Z
SA-525-Z
SA-540-Z
Input side Control voltage
4 to 32 V DC
Input current
20 mA or less
Recovery voltage
1 V or more
Output side Maximum load current
15 A
25 A
40 A
Load voltage
75 to 250 V AC 45 to 65 Hz
Surge-on current (*1)
150 A
250 A
400 A
'OFF-state' leakage current
10 mA or less (60 Hz)
'ON-state' voltage drop
1.6 V or less (When applying maximum load)
Minimum load current (*2)
100 mA
(*1) 60 Hz, 1 cycle
(*2) When load current is lower than (and including) the rated load current,
use a dummy resistor so that the load current can become 100 mA or more.

Measurement range 0 to 2000 ppm, 0 to 5000 ppm (must be specified)
Output 4 to 20 mA DC, 1 to 5 V DC (must be specified)
Supply voltage 24 V DC10%

Performance
Model
SA-515-Z
SA-525-Z
SA-540-Z
Remarks
Dielectric strength
Input-Output: 4000 V AC
Input-Case: 2500 V AC
For 1 minute
Operating temperature
-20 to 80
No icing at low temperature, and non-condensing
Storage temperature
-20 to 85

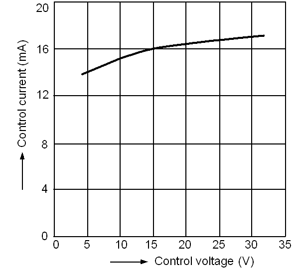

Control Voltage and Current Characteristics Characteristics of Control Voltage and Current

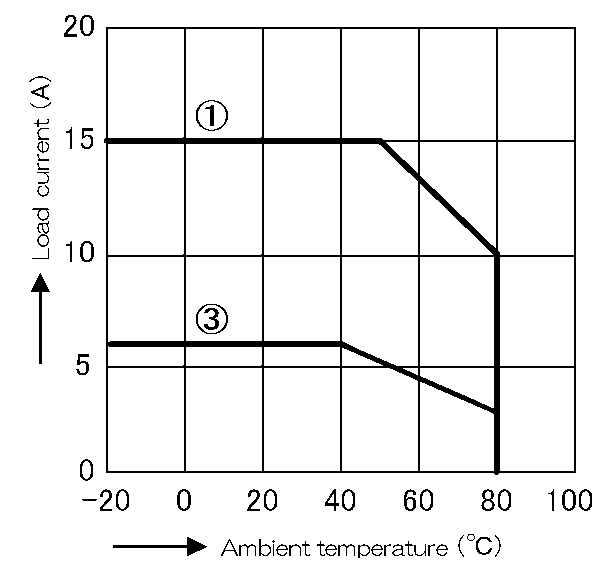

Ambient Temperature and Load Current SA-515-Z

SA-525-Z

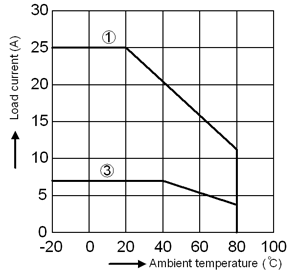

SA-525-Z Ambient Temperature and Load Current
SA-540-Z

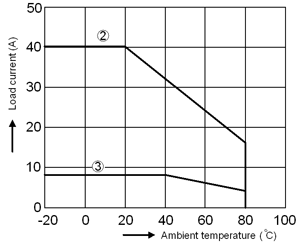

SA-540-Z Ambient Temperature and Load Current

① When mounted to the AQP813 type heat sink.
② When mounted to the AQP815 type heat sink.
③ When used without heat sink.

The SA-500 can be used at an ambient temperature within the curved line indicated in the above diagrams.
Safety Standards
CE Marking
EMC Emission specifications
EN61000-6-4
EN55011 Group 1, Class A
EMC Immunity specifications
EN61000-6-2
LVD VDE-REG-Nr.D553(EN60950-1)
Other
Control System Zero voltage switching system
Weight Approx. 70 g
Accessories Included Instruction manual 1 copy
Accessories Sold Separately
Terminal cover TC-SA5
Heat sink AQP813 (for SA-515-Z, SA-525-Z)
AQP815 (for SA-540-Z)
