PLC Interface Unit
SIF-400 Catalog
SIF-400 Instruction Manual
SIF-400

SIF-400 Photo
- Compact
- DIN rail mounted
- Programless connection with a PLC and Shinko digital
   indicating controllers

- Dimensions



Compact
22.5 x 75 x 100mm (W x H x D)


DIN rail mounted
The unit can be easily fixed to the DIN rail, and can be installed in narrow spaces.


Programless connection with a PLC and Shinko digital indicating controllers
The SIF-400 is a unit for interfacing between the PLC and a maximum of 32 units
of Shinko digital indicating controllers (DCL-33A or JCx-33A series).
The SIF-400 stores the data of the controllers in the PLC register, and exchanges
data by activating Reading/Writing flag.
PLCs corresponding to the SIF-400 and its manufacturers
Mitsubishi Electric Corp.: MELSEC A (A, AnA), Q series, QnA series, FX2N series
Omron Corp.: SYSMAC series
Fuji Electric Co., Ltd.: MICREX-F series
Yokogawa Electric Corp.: FA-M3 series

to top

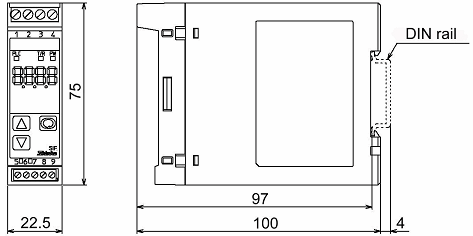

Dimensions (Scale: mm)
SIF-400 External dimensions
