Signal Conditioner 　
SG series, SH series 　

Signal Conditioner SG series Signal Conditioner SH series
- A Wide Range of Lineup - Selectable depending on the usage and function.

- Features Common to All series

- List of models

(SH series: 2024.8.30 Discontinued)



A Wide Range of Lineup - Selectable depending on the usage and function.
Series Features Model 　
Multi Series Flagship model
Pursuit of multi-functions and usability
SG series
White LED
List of models
Air-Conditioning
Control Series		 Models for air-conditioning control
Products necessary for air-conditioning control are lined up in the Multi series.
List of models
Alarm Series Alarm setters
2-outputs and 4-outputs are available.
List of models
Link Series Model equipped with serial communication
Models with Modbus RTU are lined up in the Multi series.
List of models
Standard Series Standard model
Simple products with no indication display are lined up.
SH series
No indication
List of models

Transducer(SC series)

Accessories
to top

Features Common to All series

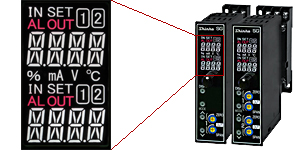

White LED（Multi, Air-Conditioning Control, Alarm, Link series）
　 The industry's first! Built-in white LED liquid crystal
11-segments display (Alphanumeric characters can be used.)
Mounted in a dark panel, the display is easily seen.
White LED(Multi, Air-Conditioning, Alarm, Link series)

PC setting possible
　

All products can be set by the computer (loader terminal equipped).
Being connected to a computer through a special cable (sold separately), this product starts up via USB bus power, and simplifies making setting changes. Exclusive Setting Software is available. The software can be downloaded from Shinko website for free.

Special cable (sold separately) and Setting Software
Connecting the SG, SH series to a PC using the tool cable (sold separately)
Compatible design
　
- Depth is shortened by 15 mm. (compared to market standard)
- Sufficient load resistance：Output impedance 750 Ω for both 1-output and 2-outputs
- Built-in shunt resistor or externally mounted shunt resistor is selectable.
- 2-wire transmitter (sensors, etc. equipped with HART communication) can be connected.
　

Options
　
- Multi-rotation trimmer :Allowance of adjustment width enables fine adjustment.
- Coatings are available :This can be used when environmental countermeasures need to be taken.
　

Worldwide power supply
　 All products support 85 to 264 V AC.

24 V AC/DC is available for the following models:
SGI, SGS, SGD, SGM, SGT, SGR, SGP, SGU, SGL, SGB, SGC
　

Close contact mounting
　 All products can be mounted in close contact.
　

Display pattern（Multi, Air-Conditioning Control, Alarm, Link series）
　 9 display patterns are available.
Auto lights-out is also available.
　

Multifunctional（Multi, Air-Conditioning Control, Alarm, Link series）
　 Startup adjustment function (manual mode), display lock function,
custom display (8 digits for upper and lower display) are provided.
　
to top


List of models
Multi Series Air-Conditioning Control Series Alarm Series Link Series
Standard Series Accessories 　 　

Multi Series
Name
Model
Input Type
Output Type
Spec Sheet
Manual
Dimensions
Isolator
(1-output)
2019.06.24
 SGI 4 to 20mA
1 to 5V		 4 to 20mA
1 to 5V		 PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Isolator
(2-outputs)
2019.06.24
 		SGIW 4 to 20mA
1 to 5V		 4 to 20mA
1 to 5V		 PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
DC signal transmitter
(1-output)
2019.06.24
 SGS Current, voltage input Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
DC signal transmitter
(2-outputs)
2019.06.24
SGSW Current, voltage input Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Current loop supply
(1-output)
2019.06.24		 SGD 4 to 20mA Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Current loop supply
(2-outputs)
2019.06.24		 SGDW 4 to 20mA Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Current loop supply with ratio setting
(1-output)
2019.06.24		 SGM 4 to 20mA Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Current loop supply with ratio setting
(2-outputs)
2019.06.24		 SGMW 4 to 20mA Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Thermocouple transmitter
(1-output)
2019.06.24		 SGT Thermocouple Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Thermocouple transmitter
(2-outputs)
2019.06.24		 SGTW Thermocouple Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
RTD transmitter
(1-output)
2019.06.24		 SGR RTD Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
RTD transmitter
(2-outputs)
2019.06.24		 SGRW RTD Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Potentiometer transmitter
(1-output)
2019.06.24
 SGP Potentiometer Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Potentiometer transmitter
(2-outputs)
2019.06.24
 SGPW Potentiometer Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Universal transmitter
(1-output)
2019.06.24		 SGU Current, voltage,
Thermocouple
RTD		 Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Universal transmitter
(2-outputs)
2019.06.24		 SGUW Current, voltage,
Thermocouple
RTD		 Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Linearizer
(1-output)
2019.06.24
 SGL Current, voltage Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Multi pulse transmitter
(1-output)
2024.03.14
 SGF Pulse input Various pulse outputs PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Multi pulse transmitter
(2-outputs)
2024.03.14
 SGFW Pulse input Various pulse outputs PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Pulse-Analog transmitter
(1-output)
2024.03.14		 SGJ Pulse input Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Pulse-Analog transmitter
(2-outputs)
2024.03.14		 SGJW Pulse input Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Differential transmitter
(1-output)
2019.06.24
 SGQ Thermocouple
RTD		 Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
2-input math function transmitter
(1-output)
2019.06.24
 SGZ Current, voltage, Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)

To 24 V Pulse Transmitter (SAFx series)
to top

Air-Conditioning Control Series
Name
Model
Input Type
Output Type
Spec sheet
manual
Dimensions
High/Low selector
(1-output)
2019.06.24		 SGH Current, voltage, Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Ratio, Bias
(Ratio transmitter)
(1-output)
2019.06.24
 SGB Current, voltage, Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Ratio, Bias
(Ratio transmitter)
(2-outputs)
2019.06.24
 SGBW Current, voltage, Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Split-Range
transmitter
(2-outputs)
2019.06.24
 SGXW Current, voltage, Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Limiter
(1-output)
2019.06.24
 SGC Current, voltage, Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Limiter
(2-outputs)
2019.06.24
 SGCW Current, voltage, Current, voltage output PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
to top

Alarm Series
Name
Model
Input Type
Output Type
Spec sheet
manual
Dimensions
Instrumentation signal input
Alarm setter
(4 to 20mA, 1 to 5V only)
(2-outputs)
2019.06.24

 SGAL 4 to 20mA
1 to 5V		 Relay output
a or b contact
selectable		 PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Instrumentation signal input
Alarm setter
(4 to 20mA, 1 to 5V only)
(4-outputs)
2019.06.24
 SGAL 4 to 20mA
1 to 5V		 Relay output
a or b contact
selectable		 PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Universal input
Alarm setter
(2-outputs)
2019.06.24

 SGAU Current, voltage,
Thermocouple
RTD		 Relay output
a or b contact
selectable		 PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)
Universal input
Alarm setter
(4-outputs)
2019.06.24

 SGAU Current, voltage,
Thermocouple
RTD		 Relay output
a or b contact
selectable		 PDF Download Manual
PDF Download Dimensions
Dimensions(DXF)

To 24 V Alarm Detector (SAxA series)
to top

Link Series
Name
Model
Input Type
Output Type
Spec sheet
manual
Dimensions
Isolator
(1-output)
2019.06.24		 SGIL 4 to 20mA
1 to 5V		 4 to 20mA
1 to 5V		 PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
DC signal transmitter
(1-output)
2019.06.24
 SGSL Current, voltage, Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Current loop supply
(1-output)
2019.06.24
 SGDL 4 to 20mA Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Current loop supply with ratio setting
(1-output)
2019.06.24
 SGML 4 to 20mA Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Thermocoupletransmitter
(1-output)
2019.06.24

 SGTL Thermocouple Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
RTDtransmitter
(1-output)
2019.06.24
 SGRL RTD Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Potentiometertransmitter
(1-output)
2019.06.24
 SGPL Potentiometer Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Universal transmitter
(1-output)
2019.06.24
 SGUL Current, voltage,
Thermocouple
RTD		 Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Linearizer
(1-output)
2019.06.24

 SGLL Current, voltage, Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Multi pulse
transmitter
(1-output)
2024.03.14
 SGFL Pulse input Various pulse outputs PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Pulse-Analog
transmitter
(1-output)
2024.03.14
 SGJL Pulse input Current, voltage output PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Ratio, Bias
(Ratio transmitter)
(1-output)
2019.06.24
 SGBL Current, voltage, Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
Limiter
(1-output)
2019.06.24
 SGCL Current, voltage, Current, voltage output PDF Download Spec sheet
PDF Download Manual
PDF Download Communication
PDF Download Dimensions
Dimensions(DXF)
to top

Standard Series
Name
Model
Input Type
Output Type
Spec sheet
manual
Dimensions
SH series
2024.03.14		 SHxx     PDF Download Manual
Isolator
(1-output)
2019.04.26		 SHI 4 to 20mA
1 to 5V		 4 to 20mA
1 to 5V		 PDF Download Spec sheet
PDF Download Dimensions
Dimensions(DXF)
Isolator
(2-outputs)		 SHIW 4 to 20mA
1 to 5V		 4 to 20mA
1 to 5V		 PDF Download Dimensions
Dimensions(DXF)
DC signal transmitter
(1-output)
2019.04.26		 SHS Current, voltage, Current, voltage output PDF Download Spec sheet
PDF Download Dimensions
Dimensions(DXF)
DC signal transmitter
(2-outputs)		 SHSW Current, voltage, Current, voltage output PDF Download Dimensions
Dimensions(DXF)
Current loop supply
(1-output)
2019.04.26		 SHD 4 to 20mA Current, voltage output PDF Download Spec sheet
PDF Download Dimensions
Dimensions(DXF)
Current loop supply
(2-outputs)		 SHDW 4 to 20mA Current, voltage output PDF Download Dimensions
Dimensions(DXF)
Thermocouple transmitter
(1-output)
2019.04.26
 SHT Thermocouple Current, voltage output PDF Download Spec sheet
PDF Download Dimensions
Dimensions(DXF)
Thermocouple transmitter
(2-outputs)
 SHTW Thermocouple Current, voltage output PDF Download Dimensions
Dimensions(DXF)
RTDtransmitter
(1-output)
2019.04.26		 SHR RTD Current, voltage output PDF Download Spec sheet
PDF Download Dimensions
Dimensions(DXF)
RTDtransmitter
(2-outputs)		 SHRW RTD Current, voltage output PDF Download Dimensions
Dimensions(DXF)
Potentiometertransmitter
(1-output)
2019.04.26		 SHP Potentiometer Current, voltage output PDF Download Spec sheet
PDF Download Dimensions
Dimensions(DXF)
Potentiometertransmitter
(2-outputs)
 SHPW Potentiometer Current, voltage output PDF Download Dimensions
Dimensions(DXF)
to top

Accessories
Name
Model
Spec Sheet
Manual
Dimensions
Tool Cable CME-001 PDF Manual
PDF Dimensions
Console software

 SWC-SGSH01M_V203 Download Download (58,125KB)
USB driver (ver.2.12.36)
USB driver corresponds to 32bit or 64bit OS.
Required when Tool Cable (CME-001) is used.
 Download Download (2,343KB)
Shunt resistor
 RES-xxx PDF Dimensions
Cold junction compensator
 CJA PDF Dimensions
8P socket PDF Dimensions
11P socket PDF Dimensions
to top


CE conformity & UL Approved Products | Discontinued Products
Sitemap | Terms of Use | Privacy Policy | Quality & Environmental Activities
Copyright (C) 2003-2024 Shinko Technos Co., Ltd. All rights reserved.
